11. Refer to the illustration as necessary when performing the following steps.

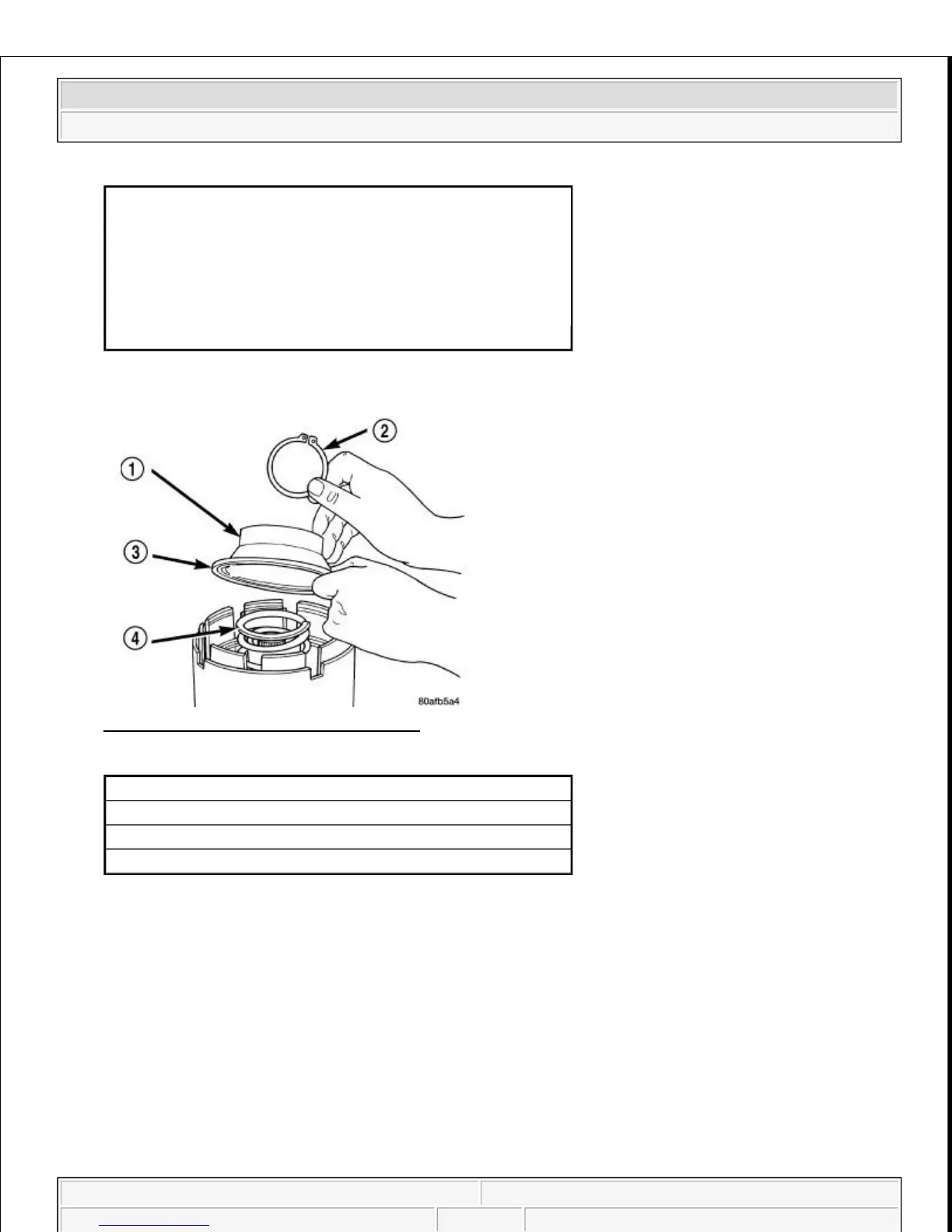

Fig. 330: UD Return Spring & Retainer
Courtesy of CHRYSLER LLC
12. Place the UD spring retainer (1) and snap ring (2) into position.
1 - SNAP RING
2 - SPRING RETAINER
3 - SPRING
4 - UD CLUTCH PISTON
5 - SEAL, OUTER
6 - SEAL, INNER
7 - INPUT CLUTCH ASSEMBLY
1 - UNDERDRIVE SPRING RETAINER
2 - SNAP RING
3 - SEAL
4 - PISTON RETURN SPRING
