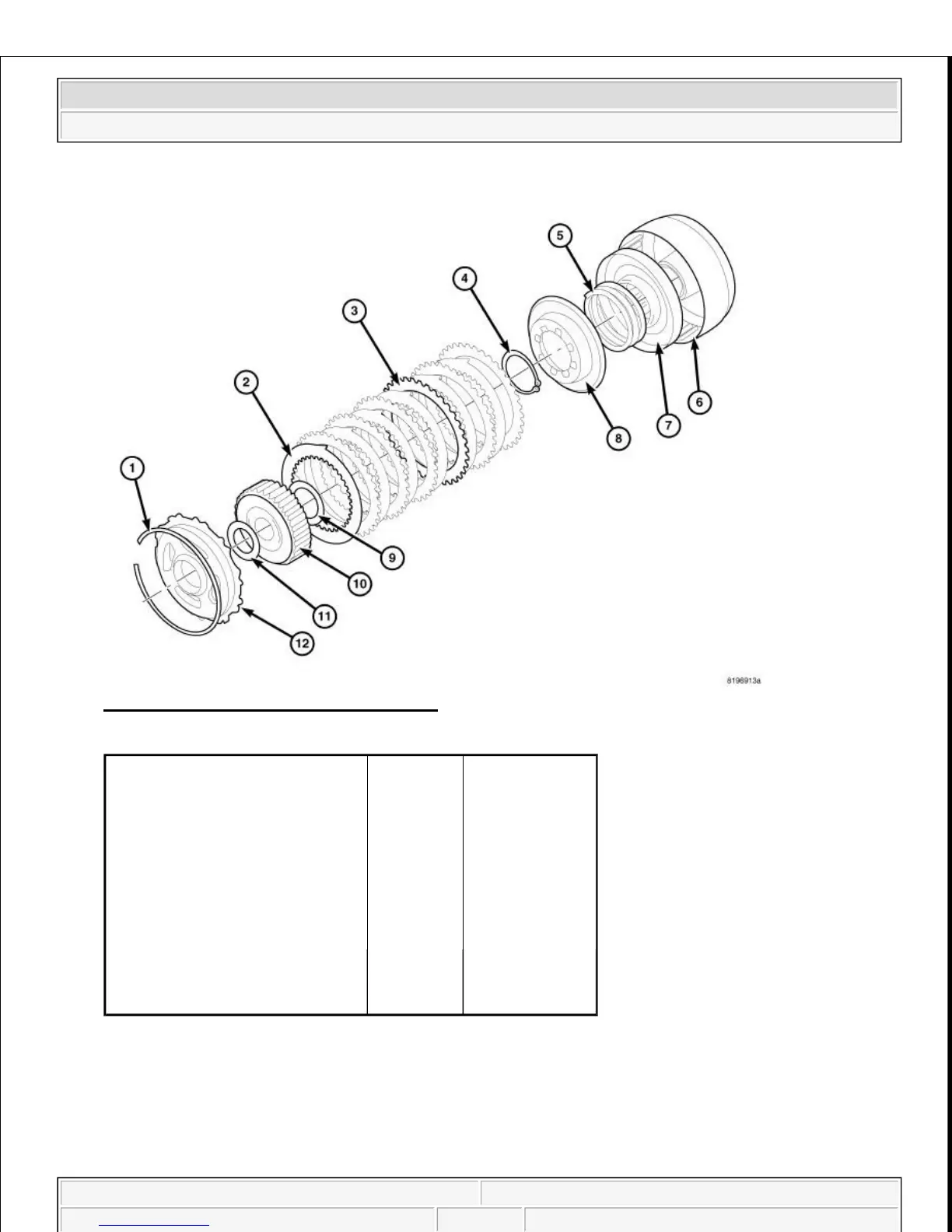

Fig. 372: Exploded View Of Direct Clutch
Courtesy of CHRYSLER LLC
23. Remove the direct clutch balance piston (8).
24. Remove the return coil spring (5).
25. Remove the direct clutch piston (7) from the retainer (6).
1 - INTERNAL SNAP RING 5 -
RETURN
COIL
SPRING
9 - #2 THRUST
BEARING
2 - FRICTION (INNER SPLINE)
6 -
RETAINER
10 - HUB
3 - FRICTION (OUTER SPLINE) 7 - PISTON
11 - #1
THRUST
BEARING
4 - RETAINER SNAP RING 8 -
BALANCE
PISTON
12 - REACTION
PLATE
(SELECTABLE)
