6. Release pressure on press, remove Compressor 9725.

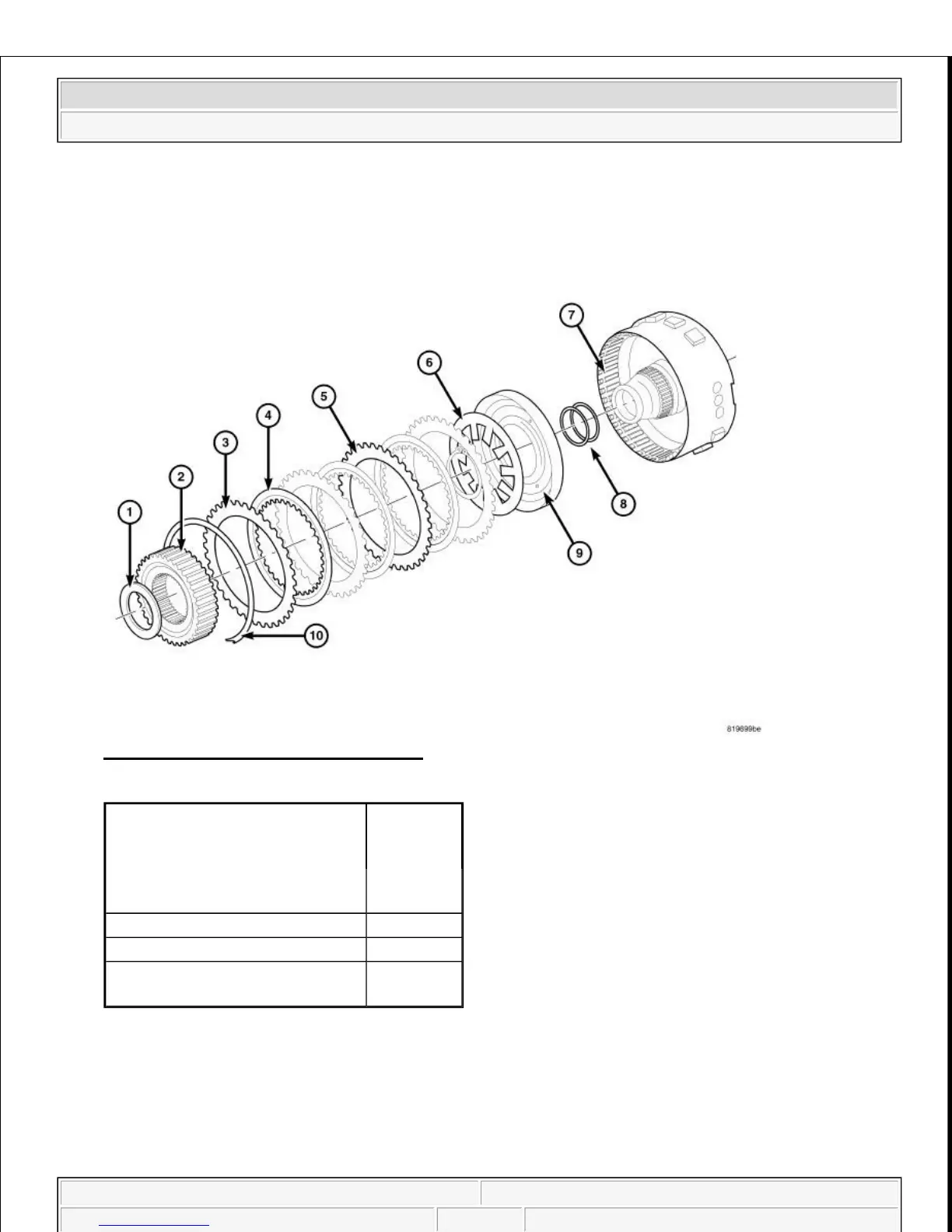

Fig. 387: Exploded View Of Low Clutch
Courtesy of CHRYSLER LLC
7. Install the friction disc's (4) and the separator plates (5).
8. Install the reaction plate (3).
9. Install the snap rin
g
(10).
1 - SNAP RING (SELECTABLE) 6 -
RETURN
SPRING
2 - CLUTCH HUB 7 -
RETAINER
3 - REACTION PLATE 8 - SEALS
4 - FRICTION DISC 9 - PISTON
5 - SEPARATOR PLATE
10 - SNAP
RING
