. 468: Bolts At Line Pressure Sensor
Courtesy of CHRYSLER LLC
1. Install the line pressure sensor on to the valve body.
2. Install the bolts (1) to the line pressure sensor and tighten to 6 N.m (50 in. lbs.).

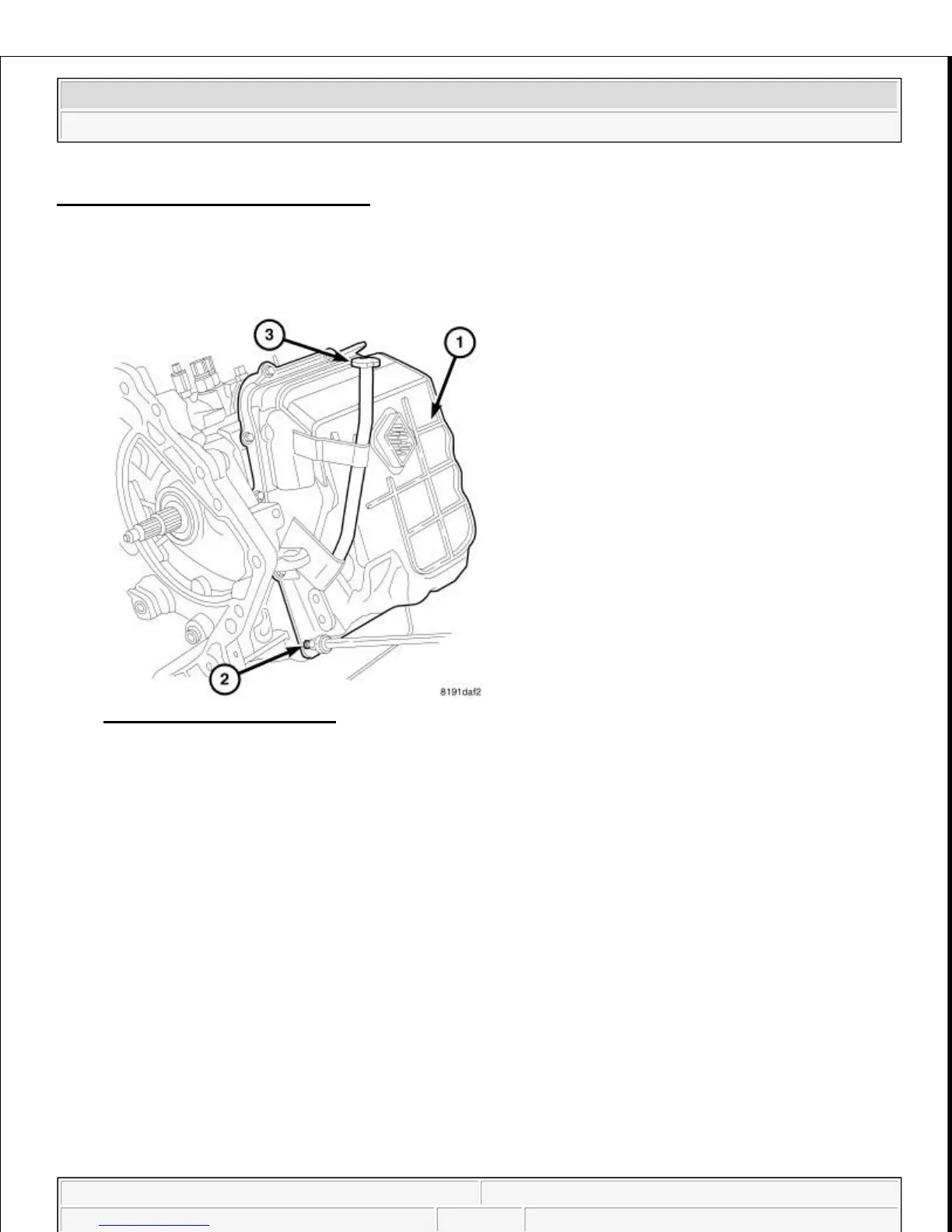

Fig. 469: Valve Body Oil Pan
Courtesy of CHRYSLER LLC
3. Install the valve body oil pan, use a bead of MOPAR® ATF RTV (MS-GF41).
4. Install the upper valve body oil pan bolts and tighten to 6 N.m (50 in. lbs.).
5. Install the pressure tap at valve body oil pan and tighten to 6 N.m (50 in. lbs.).
6. Lower the vehicle on a hoist.
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
