7. Remove the manual lever seal (2).

INSTALLATION

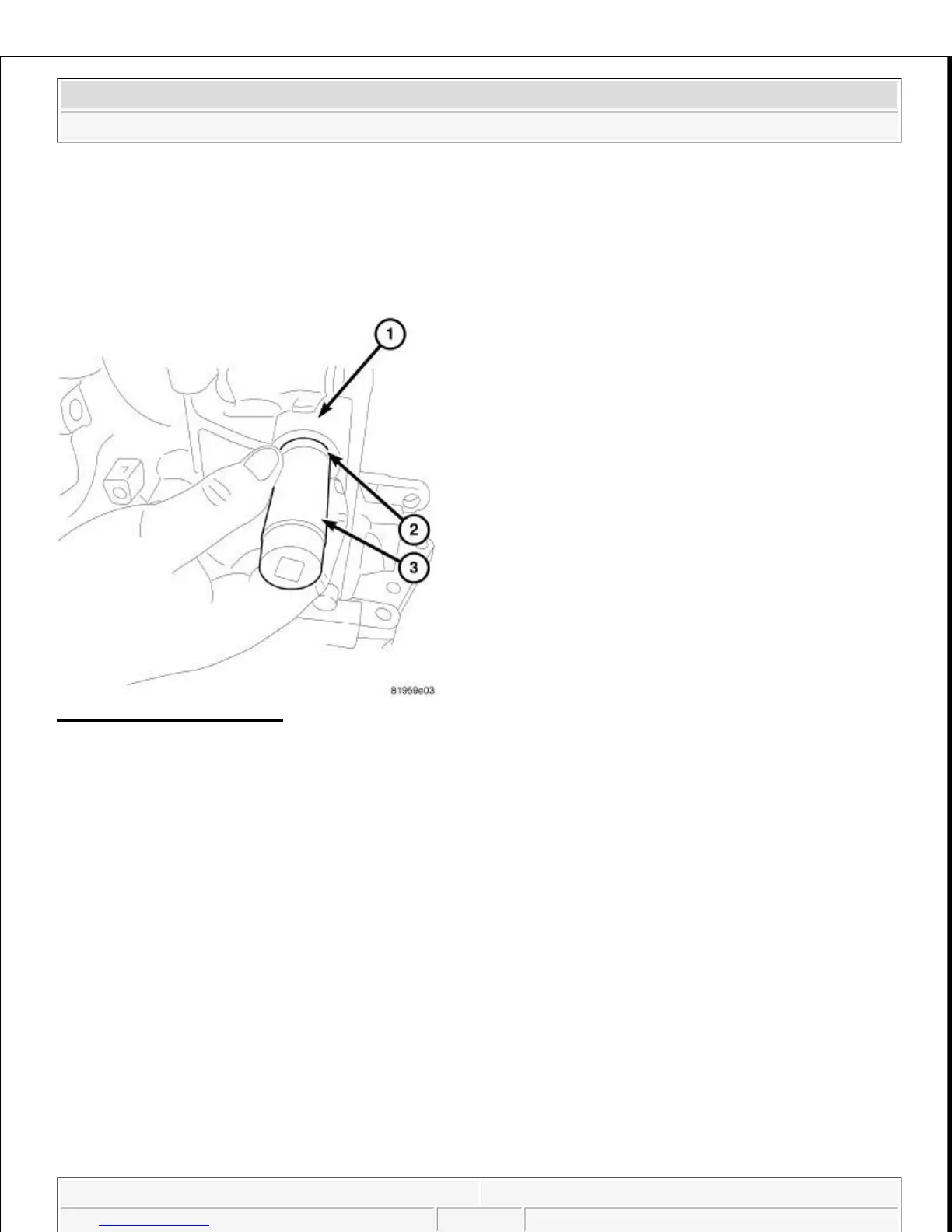

Fig. 509: Manual Lever Seal

Courtesy of CHRYSLER LLC

1. Install a new manual lever oil seal (2) usin

socket (3).

2009 Chrysler Town & Country LX

2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
