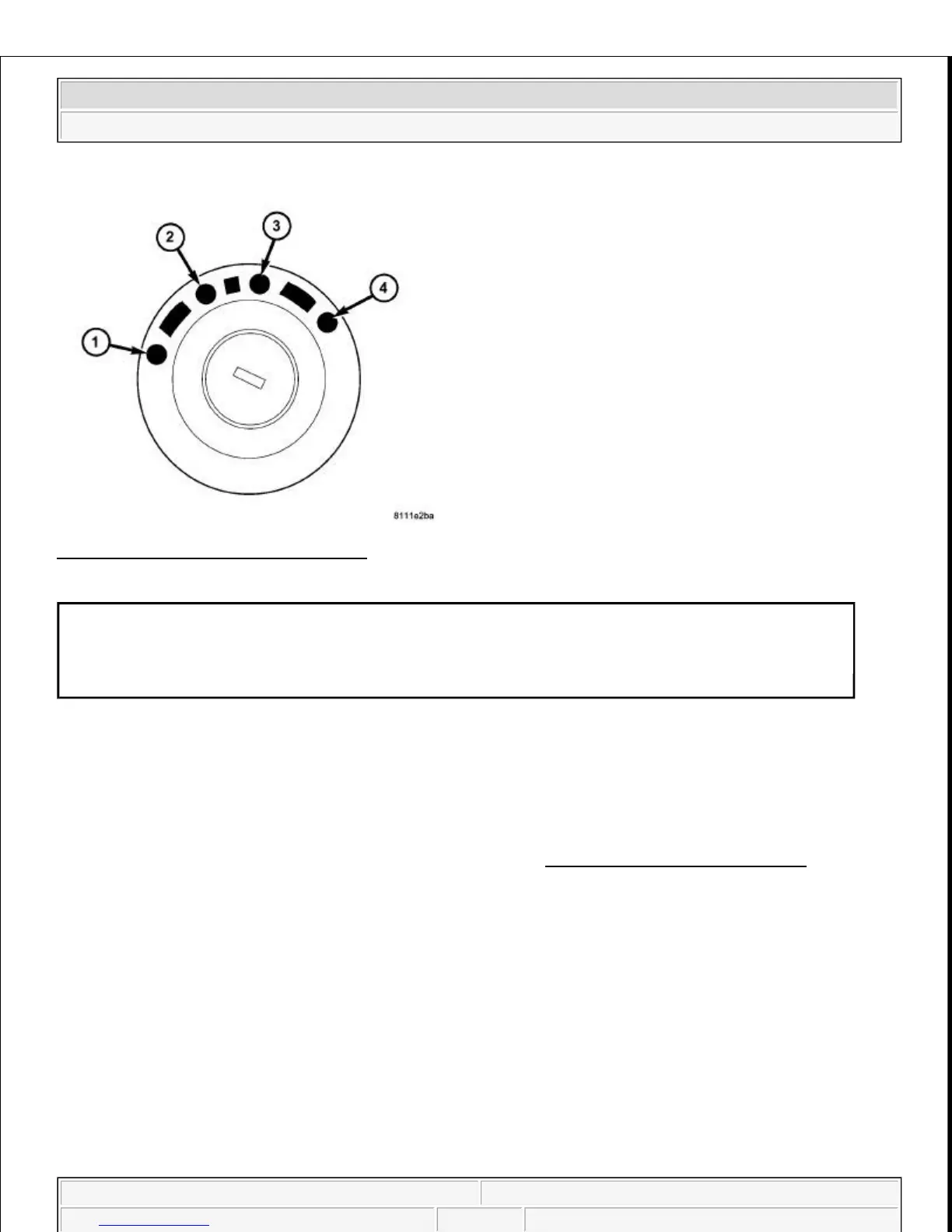

Fig. 571: Ignition Key/Switch Positions
Courtesy of CHRYSLER LLC
The following chart describes the normal operation of the Brake Transmission Shift Interlock (BTSI) system. If
the "expected response" differs from the vehicle's response, then system repair is necessary.
Refer to the following chart that expected shifter response, depending on ignition key/switch and brake pedal
ositions.
If the shifter cannot be moved out of the PARK position, refer to SHIFTER LOCKED IN PLACE below. If
the shift lever can be shifted out of PARK without the brake pedal depressed, refer to CIRCUIT TEST chart.
SHIFTER LOCKED IN PLACE
1. Gain access to the brake transmission shift interlock (BTSI) solenoid. The solenoid is part of the shifter
assembly.
2. Disconnect the wire connector from the rear of the BTSI solenoid.
3. Insert the ignition key and turn it to the ON position.
4. With the brakes applied, try moving the shifter out of the PARK position.
If the lever now moves freely in and out of PARK, perform the CIRCUIT TEST.
If the shift lever now moves freely in and out of the park position, the BTSI solenoid is faulty and the shifter
must be replaced. If the shift lever still does not move from the park position, the problem is in the shift lever
1 - LOCK
2 - ACC
3 - ON
4 - START
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
