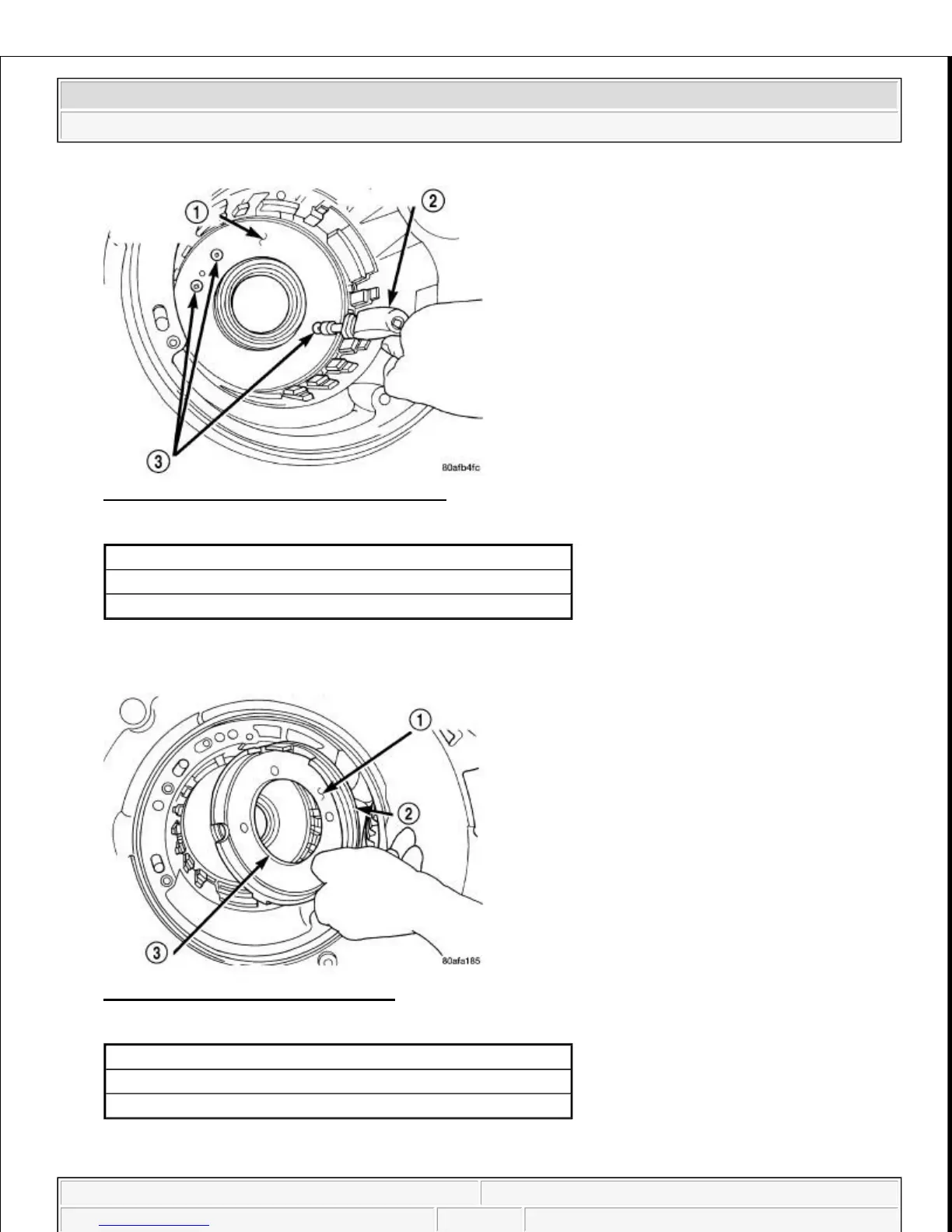

Fig. 116: Piston Retainer Attaching Screws
Courtesy of CHRYSLER LLC
4. Install low/reverse piston retainer-to-case screws (3) and tighten to 5 N.m (45 in. lbs.).
Fig. 117: Low/Reverse Clutch Piston
Courtesy of CHRYSLER LLC
1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - SCREWDRIVER
3 - TORX-LOC SCREWS
1 - LOW/REVERSE CLUTCH PISTON
2 - BONDED SEAL
3 - BONDED SEAL
NOTE: The Low/Reverse Clutch Piston has bonded seals which are not
