B • Installation
Doc. 065051-03 1/08 181

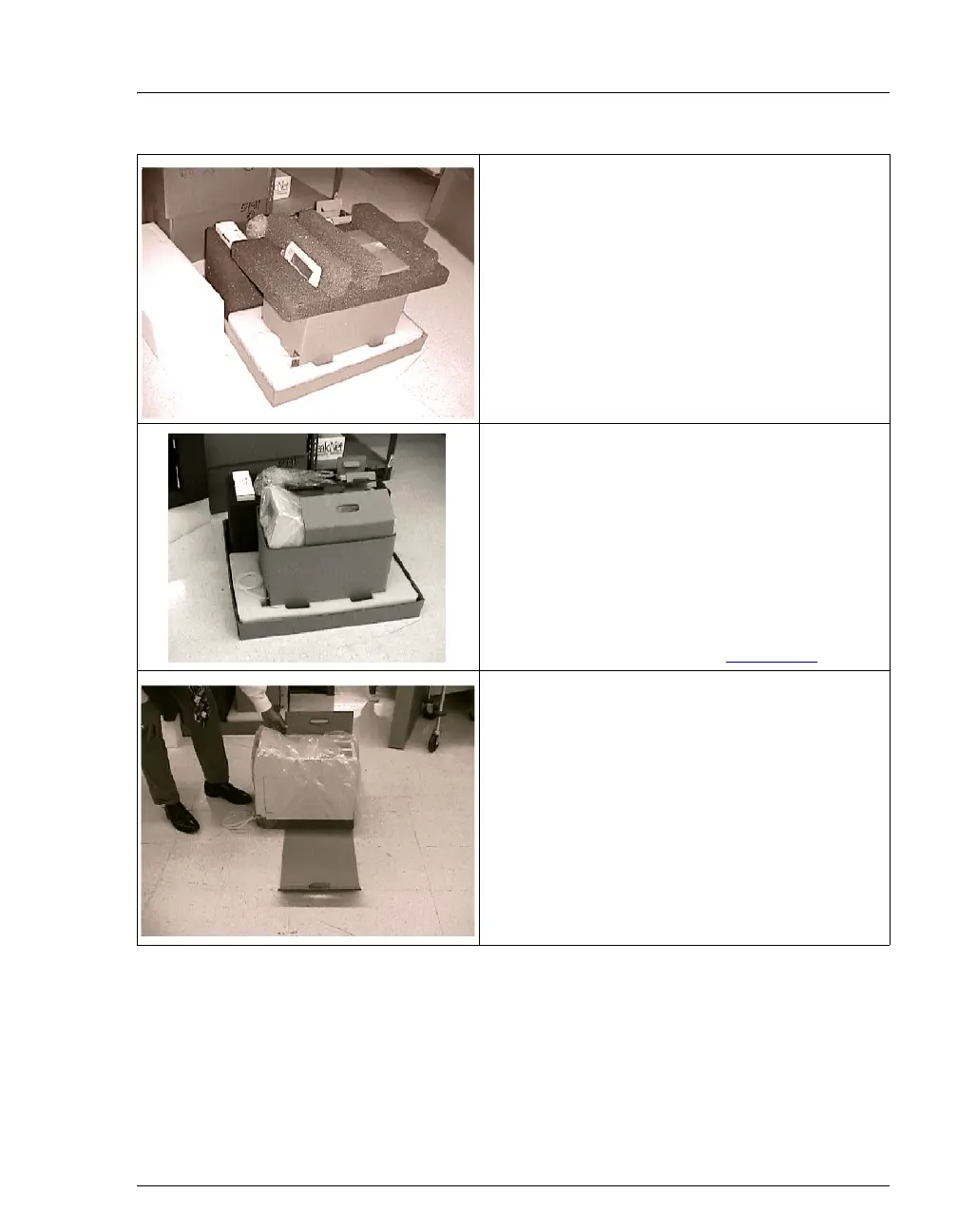

Figure B-3.
AS with foam top cap installed
2. Remove the foam top cap.
Figure B-4.
AS with sleeve assembled over cradle
Note: The AS is inserted into the bottom foam
of the main shipping container. The tubing is
coiled in front of the AS.
3. Using the handholds in the cradle, place
the AS on the bench.
4. Remove the sleeve (see Figure B-5
).
Figure B-5.
AS sitting on cradle (with the sleeve removed)
Note: The rear edge of the cradle and the rear
edge of the AS are aligned.
