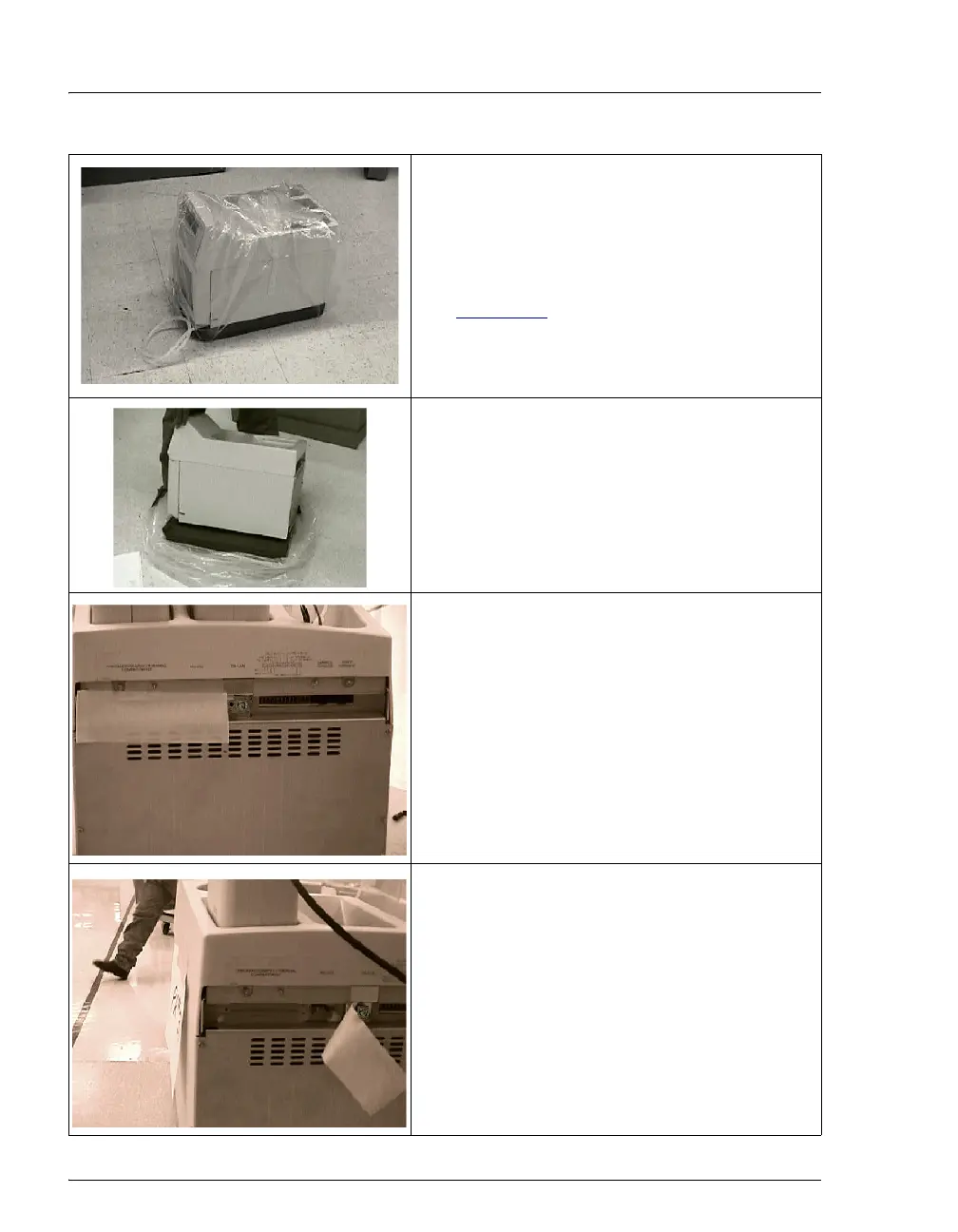

Figure B-6.
AS fully wrapped and taped within
polyethylene bag
5. Remove the polyethylene bag (see
Figure B-7
). Be careful not to damage the
drain tube.
Figure B-7.
AS sitting on foam spacer
Note: The rear of the AS is aligned with the
rear edge of the foam.
Figure B-8.
5-cm (2-in) wide masking tape securing tubing
within the recess at the rear of the AS
6. Remove the masking tape.
7. Remove the coiled tubing inside the
recess. Be careful not to damage the
tubing.
Figure B-9.
Coiled inlet tubing inserted into the recess in
the rear of AS
8. Pull enough of the inlet tubing through to
connect to the syringe and reservoir
organizer.
