B • Installation
Doc. 065051-03 1/08 183

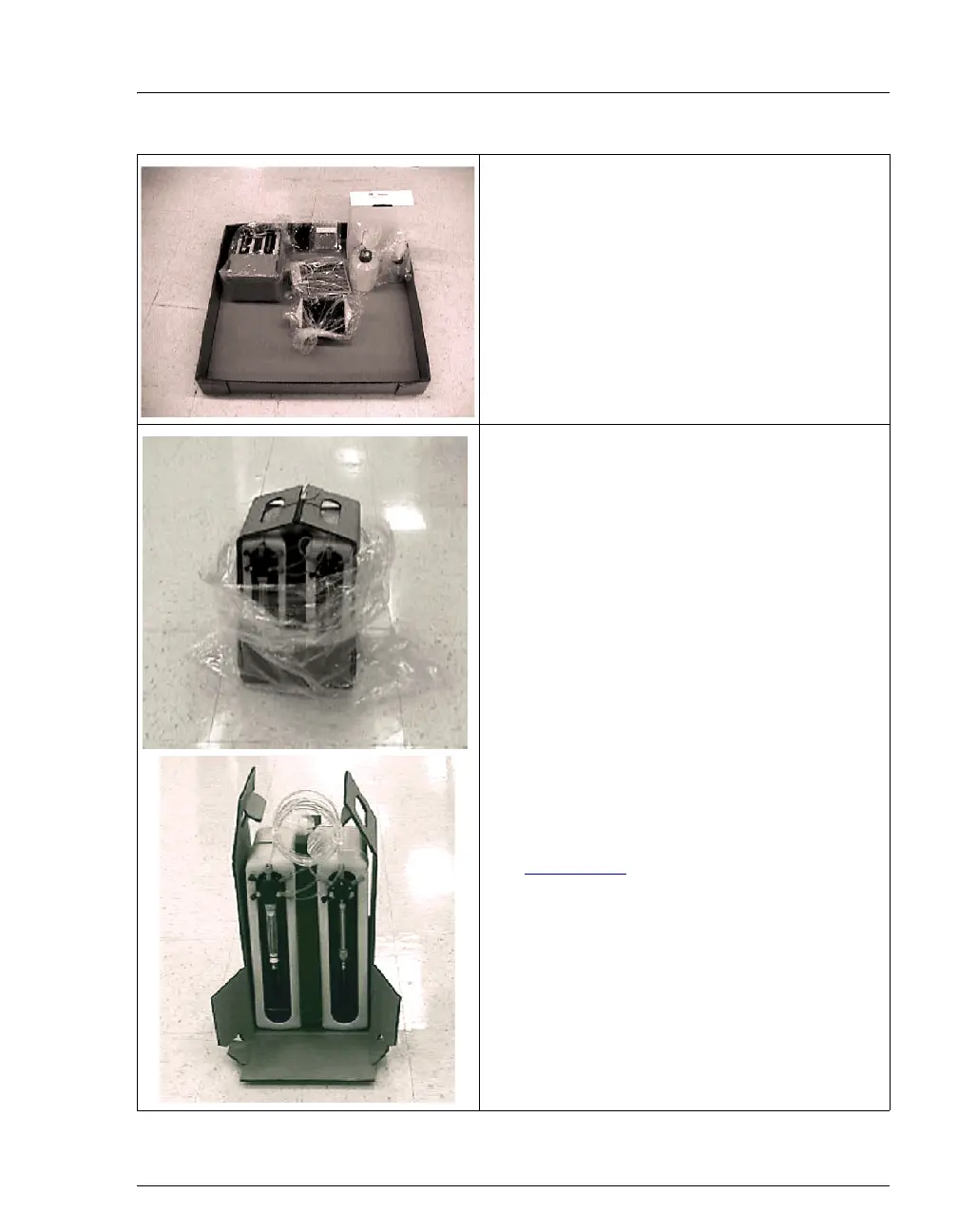

Figure B-10.
Typical items shipped in Ship Kit geometric
foam pack
Note: All items are in polyethylene bags that
are wired closed with sturdy ties.
9. Remove the items from the geometric
foam pack.
Figure B-11. Dual syringes with pigtails in
bags that are closed with sturdy ties. Syringes
packed with foam insert placed between them.
Handles are tied together with sturdy ties.
Figure B-12. Dual syringes with bag removed
Note: For a single syringe, a foam insert is
placed on the left.
10. Remove the sturdy ties and the
polyethylene bag.
11. Open the front of the sheath and use the
handles to set the pack and syringes on top
of the main AS.
12. Slide the syringes into positions (see
Figure B-13
).
