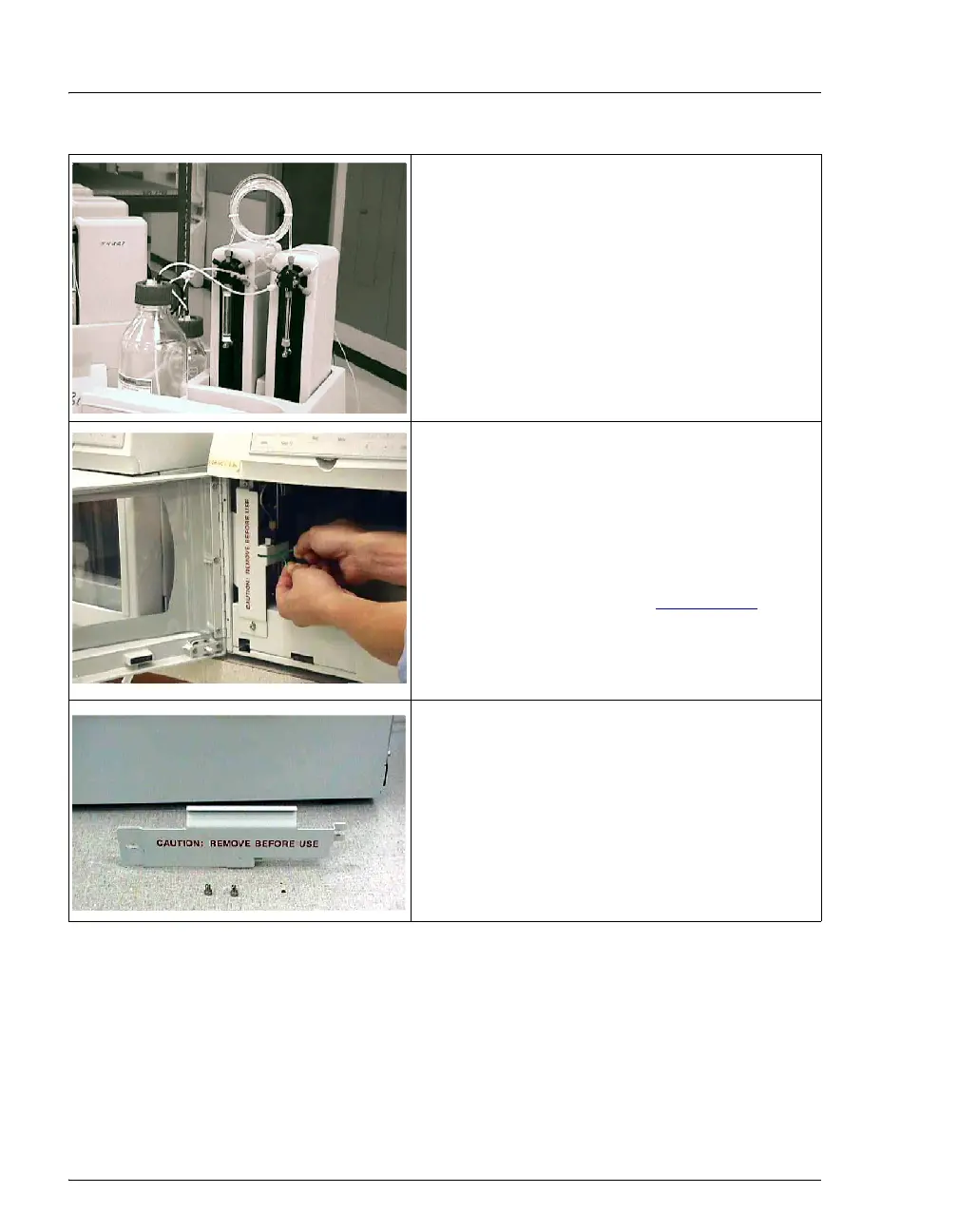

Figure B-13.
Fully assembled dual syringes with bottle
Figure B-14.
Shipping bracket hooked into frame and
attached to sample arm and chassis with
screws
13. Remove the sturdy tie, the two cap
screws, and the bracket Figure B-15
.
Figure B-15.
Shipping bracket with M3 Allen cap screws
