B • Installation
Doc. 065051-03 1/08 185

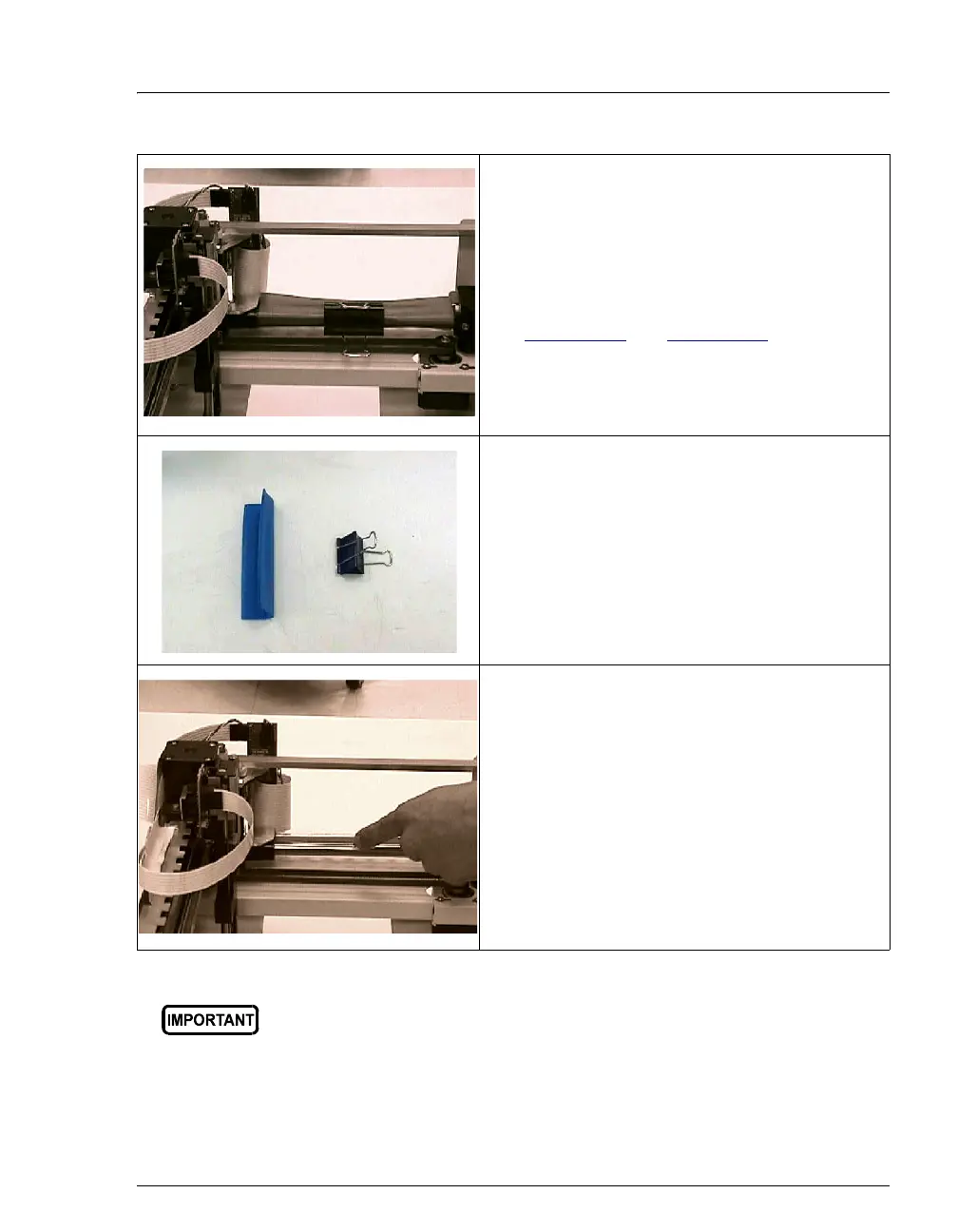

Figure B-16.
Polyethylene sleeve assembled (clipped) to
shaft to eliminate sliding of sample arm during
shipment
14. Remove the clip and sleeve (see
Figure B-17
and Figure B-18).
Note: Save the clip and sleeve. You will need
them in the future if the autosampler is
shipped.
Figure B-17.
Polyethylene sleeve and clip
Figure B-18.
Shaft with polyethylene sleeve removed
Note: Remember to save the shipping
container and all packing material.
After unpacking, save the shipping restraints. To stabilize the
sampling arm and prevent damage, always reattach these shipping
restraints before moving or shipping the AS.
