5. Route the needle
seal line out the AS
compartment
through the slot on
the left side (see
Figure B-37
).
Verify that the
tubing is not
pinched when the
door is closed.

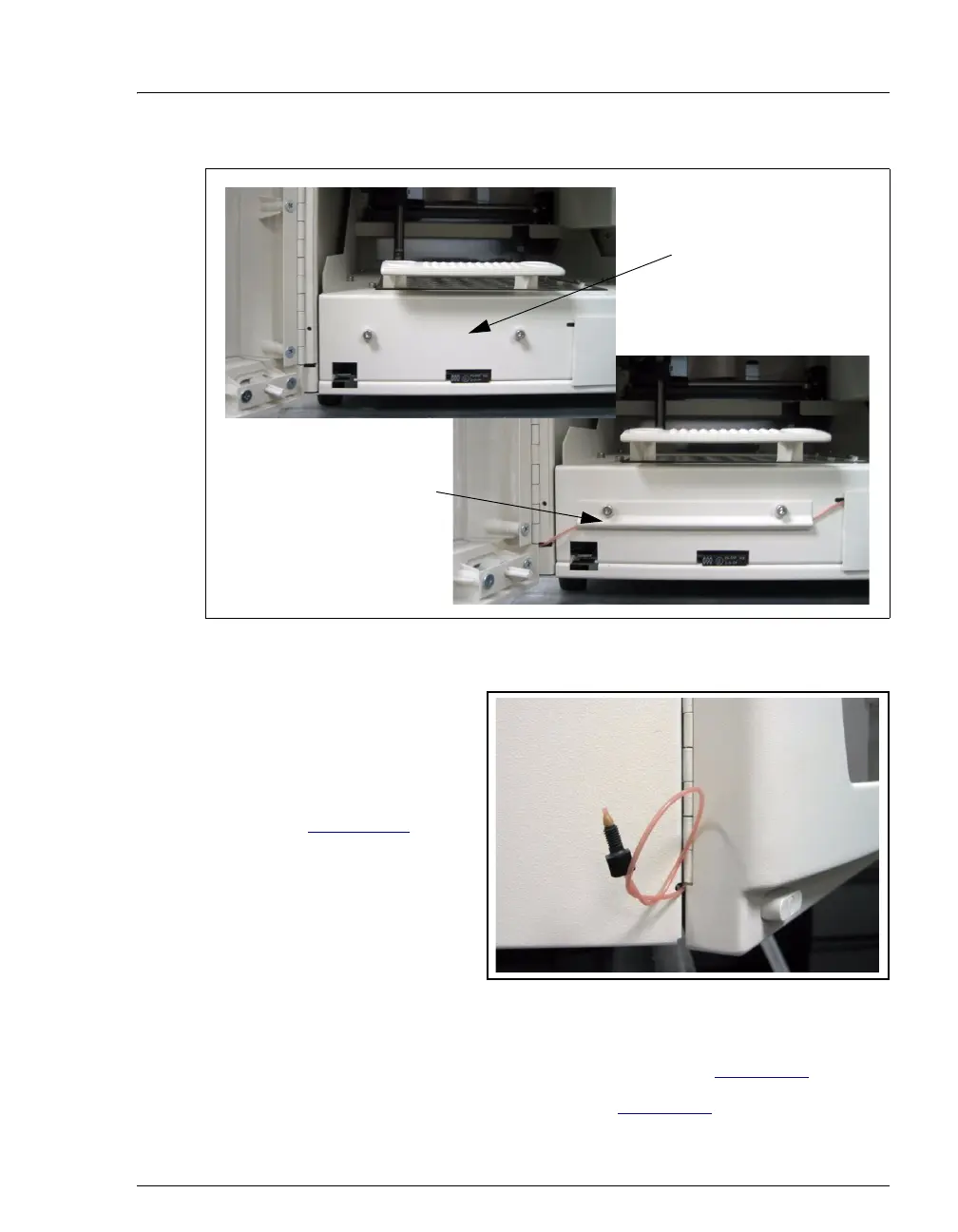

Figure B-37. Second AS Installation:
Needle Seal Line Routed Out the Left Side of the AS
6. Align the sampling needle in the inject port (see Section 5.8).
7. Calibrate the inject port volume (see Section 5.9
).
Figure B-36. Second AS Installation: Tubing Chase Installation
Attach tubing
chase here
Tubing chase attached
and needle seal line
routed to the DC
