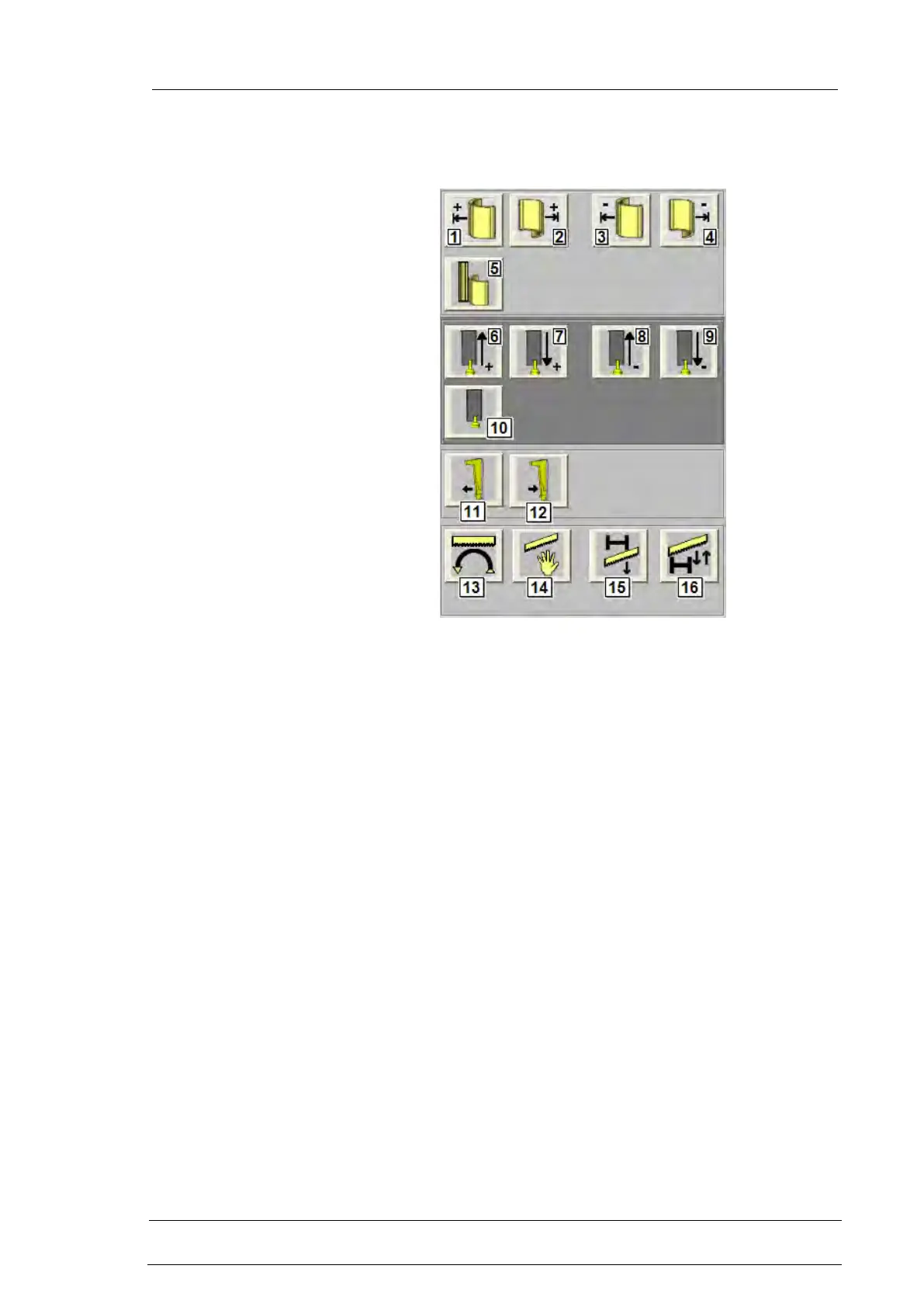

CNC push button control station – Sawing Unit
1. Selector: CLOSE of vice_1
2. Selector: OPEN of vice_1
Active in MANUAL mode.
It enables the opening or closing of the vice which stands in the
sector of the positive mitering (+)..
3. Selector: CLOSE of vice_2
4. Selector: OPEN of vice_2
Active in MANUAL mode.
It enables the opening or closing of the vice which stands in the
sector of the negative mitering (-).
5. Not used (optional)
6. Selecting switch: RISE of vertical hold down 1.
Active in MANUAL mode.
It enables the rise of the hold down switch stands in the sector of the positive
mitering (+) (optional)
7. Selecting switch: DESCENT of vertical hold down 1.
Active in MANUAL mode.
It enables the descent of the hold down switch stands in the sector of the
positive mitering (+) (optional).
8. Selecting switch: RISE of vertical hold down 1.
Active in MANUAL mode.
It enables the rise of the hold down switch stands in the sector of the negative
mitering (-) (optional)
