RX4770 M1 Upgrade and Maintenance Manual 109
Hard disk drives / solid state drives
Mounting order for 12x 2.5-inch HDD / SSD / PCIe SSD configurations

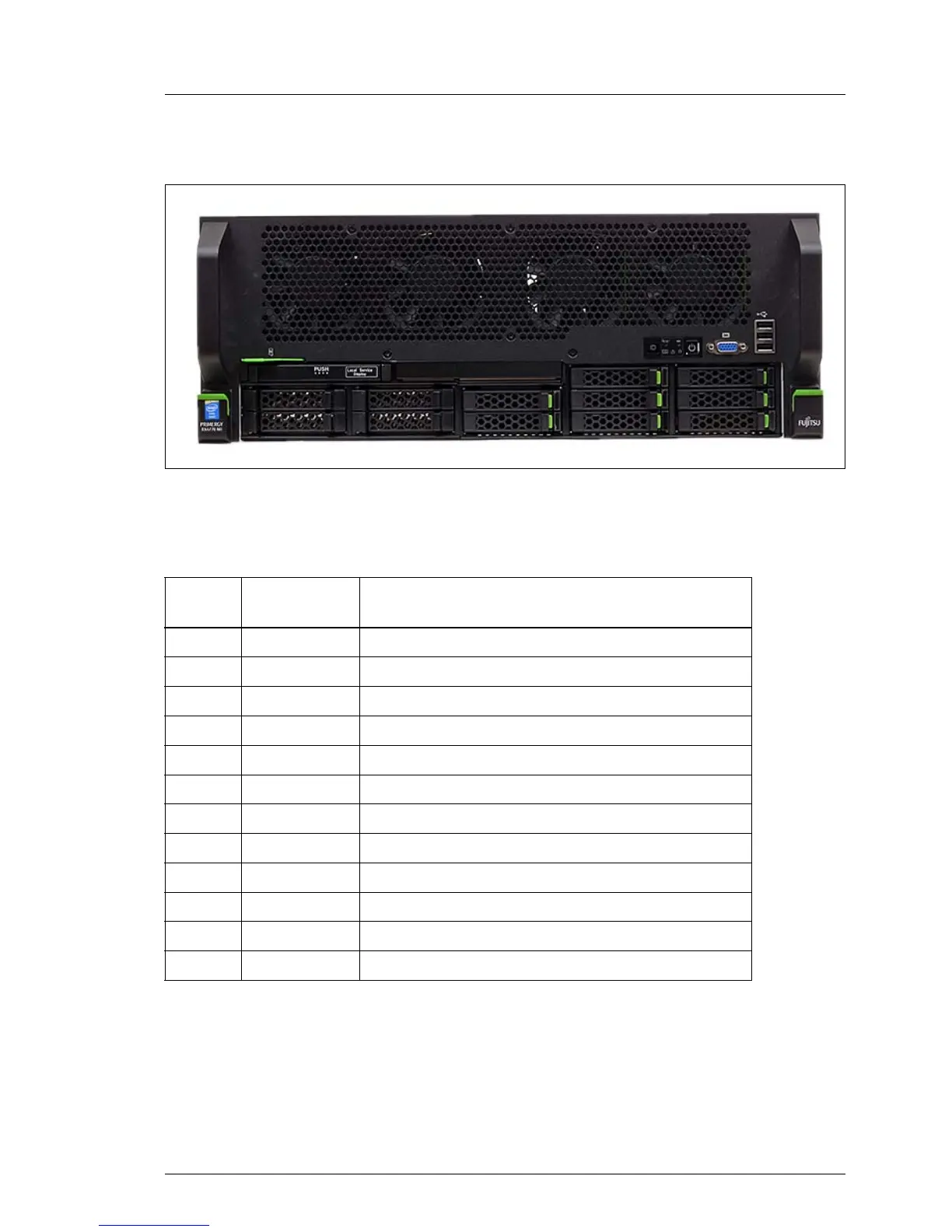

Figure 24: 2.5-inch HDD / SSD / PCIe slot assignment
I The numbering in the following table is an example which divided the
load to the internal SAS port in consideration of the performance.
Slot
No.
Mounting
order
ServerView RAID Manager display name
# 1 1 HDD/SSD vendor name (0)
# 2 3 HDD/SSD vendor name (1)
# 3 5 HDD/SSD vendor name (2)
# 4 7 HDD/SSD vendor name (3)
# 5 2 HDD/SSD vendor name (4)
# 6 4 HDD/SSD vendor name (5)
# 7 6 HDD/SSD vendor name (6)
# 8 8 HDD/SSD vendor name (7)
# 9 9 PCIe3 800GB
1
Main 2.5" H-P EP (0)
1
Depends on the capacity: possible capacities are 800 GB, 1.6 TB, 2 TB
#10 10 PCIe3 800GB Main 2.5" H-P EP (1)
#11 11 PCIe3 800GB Main 2.5" H-P EP (2)
#12 12 PCIe3 800GB Main 2.5" H-P EP (3)
#1
#2
#3
#4
#5
#7
#8
# 9
#10
#11
#12
#6
