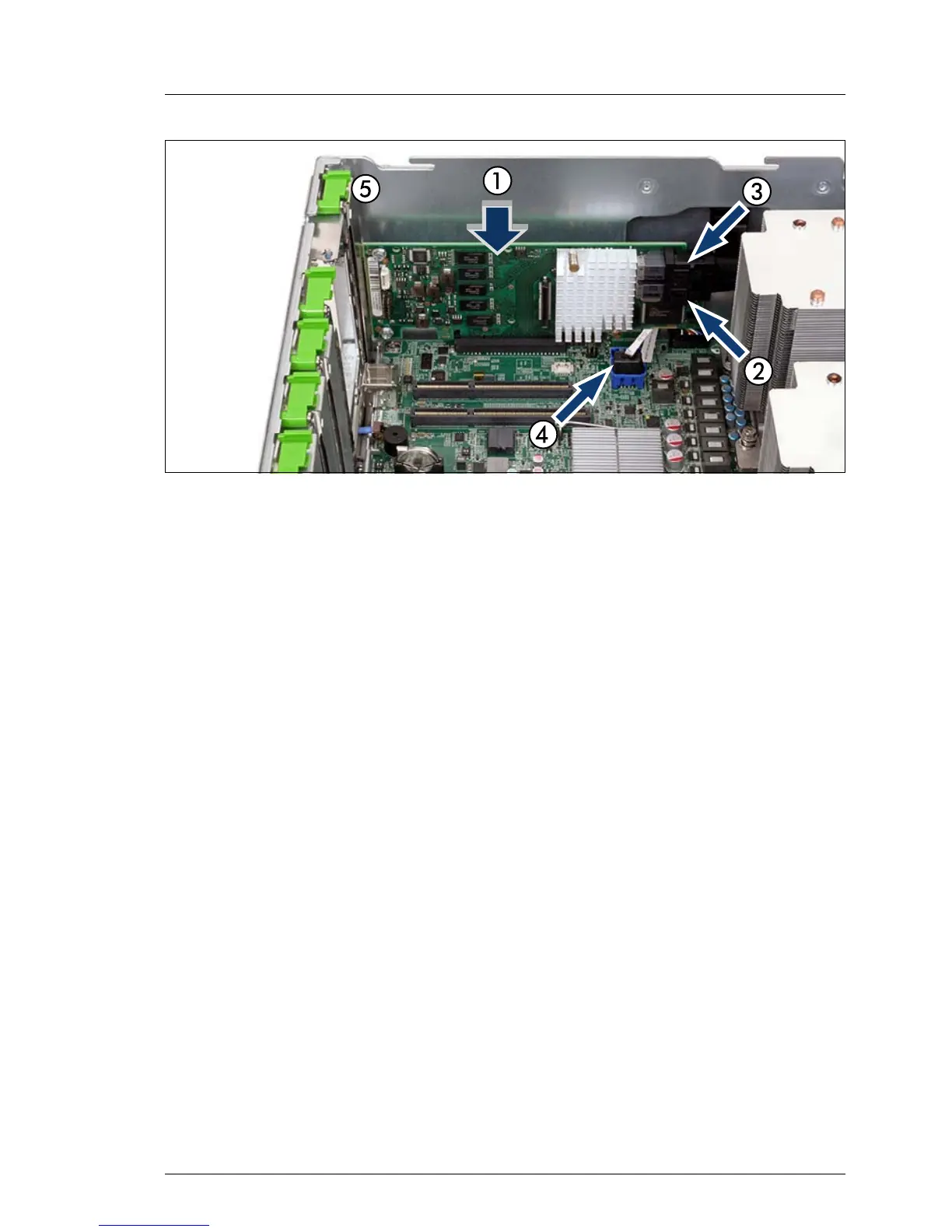

Figure 53: Installing the SAS riser
Ê Carefully insert the SAS riser into slot 11 and press down firmly until it is fully
seated in the slot (1).
I For slot preferences, please refer to section "Basic information" on
page 134.
Ê Reconnect the SAS cables for channels "4 - 7" (2) and "0 - 3" (3).
Ê Reconnect the DVD cable (4).
Ê Close the slot lock (5).
9.4.2.3 Connecting a backup unit to the expansion card
Ê If applicable, connect an FBU to the expansion card as described in section
"Installing an FBU" on page 177.
9.4.2.4 Concluding steps
Ê "Reassembling" on page 53
Ê "Connecting the server to the power source" on page 57
Ê "Switching on the server" on page 58
Ê In order to configure an expansion card that has been installed or replaced,
the card’s Option ROM has to be enabled in the system board BIOS. If
applicable, proceed as described in section "Enabling Option ROM scan" on
page 71.
