Fujitsu Primergy RX4770 M1 - Removing a System Fan

RX4770 M1 Upgrade and Maintenance Manual 125
System fans
8.2.2 Removing a system fan
I Please notice the advice for redundancy!

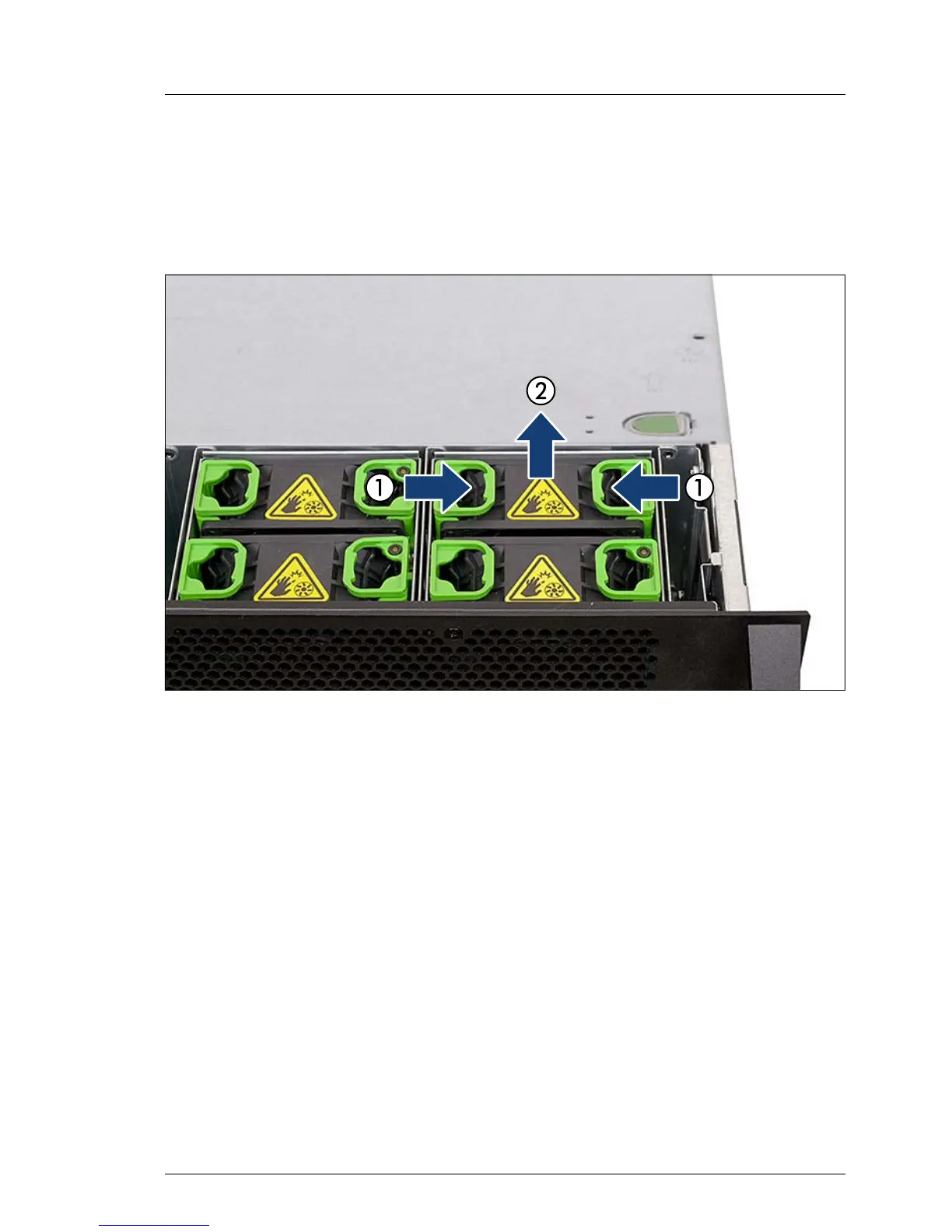

Figure 33: Removing a system fan
Ê Take the system fan by the green touch points and press them against each
other (1).
Ê Lift the system fan out of the fan box (2).
