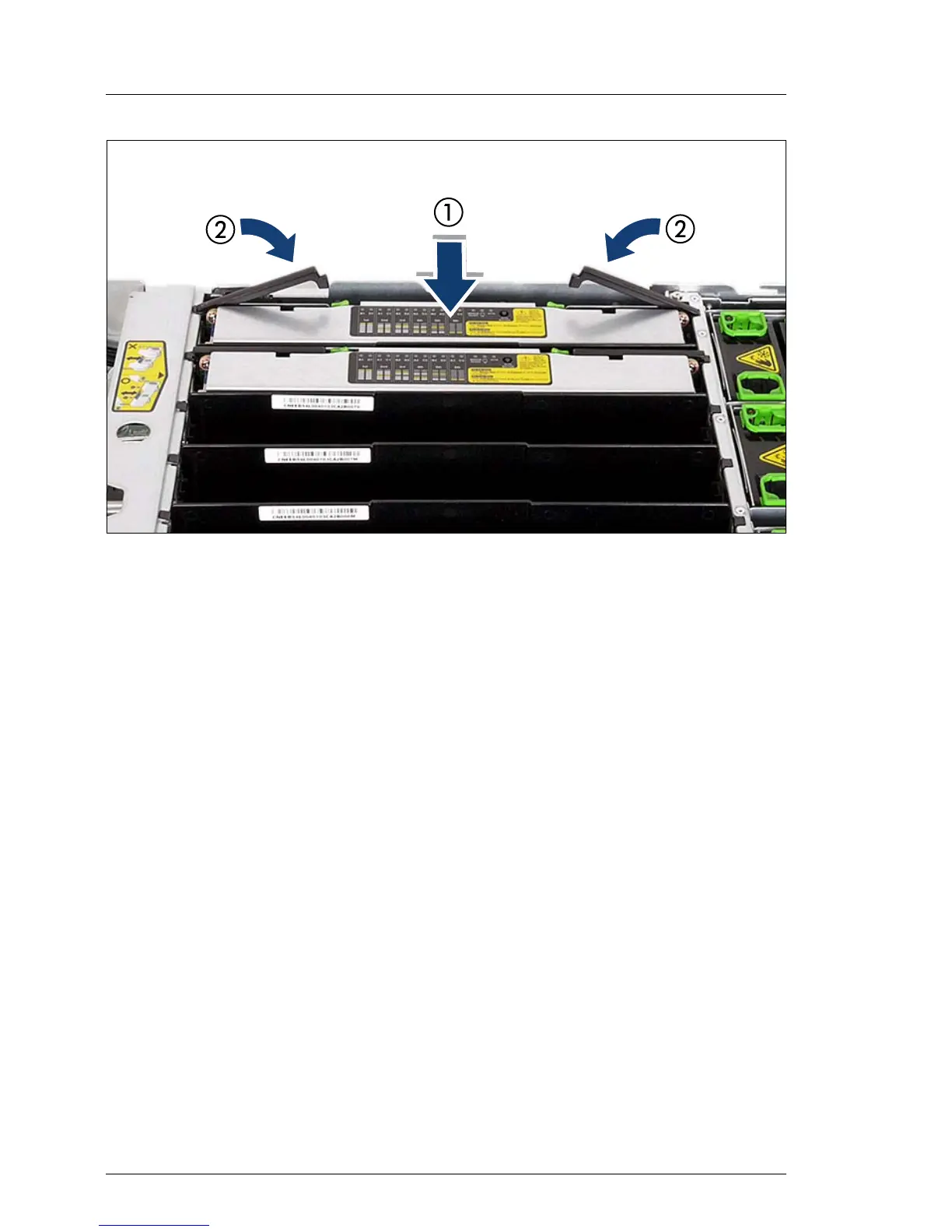

Figure 128: Installing the memory board
Ê Slide the memory board down (1) in the lateral guide channels until it stops.
Carefully press the memory board into its slot. The handles will be
automatically retracted (2).
I Do not use the handles of the memory board to force the memory
board into the slot.
Ê Make sure that the green release tabs (touch points) on the top engage.
I Make a note about the slot from which you pulled each memory board
for you have to replace it back into the same slot.
10.2.5 Concluding steps
Ê "Reassembling" on page 53
Ê "Connecting the server to the power source" on page 57
Ê "Switching on the server" on page 58
Ê "Updating or recovering the system board BIOS and iRMC" on page 67
Ê "Enabling SVOM boot watchdog functionality" on page 74
Ê "Verifying the memory mode" on page 76
Ê "Resuming BitLocker functionality" on page 80
