9.8.2.5 Installing the FBU holder onto the chassis
The following figure shows the 3 shoulder screw caps (one of them is hidden by
the system board), on which each FBU holder has to be placed.

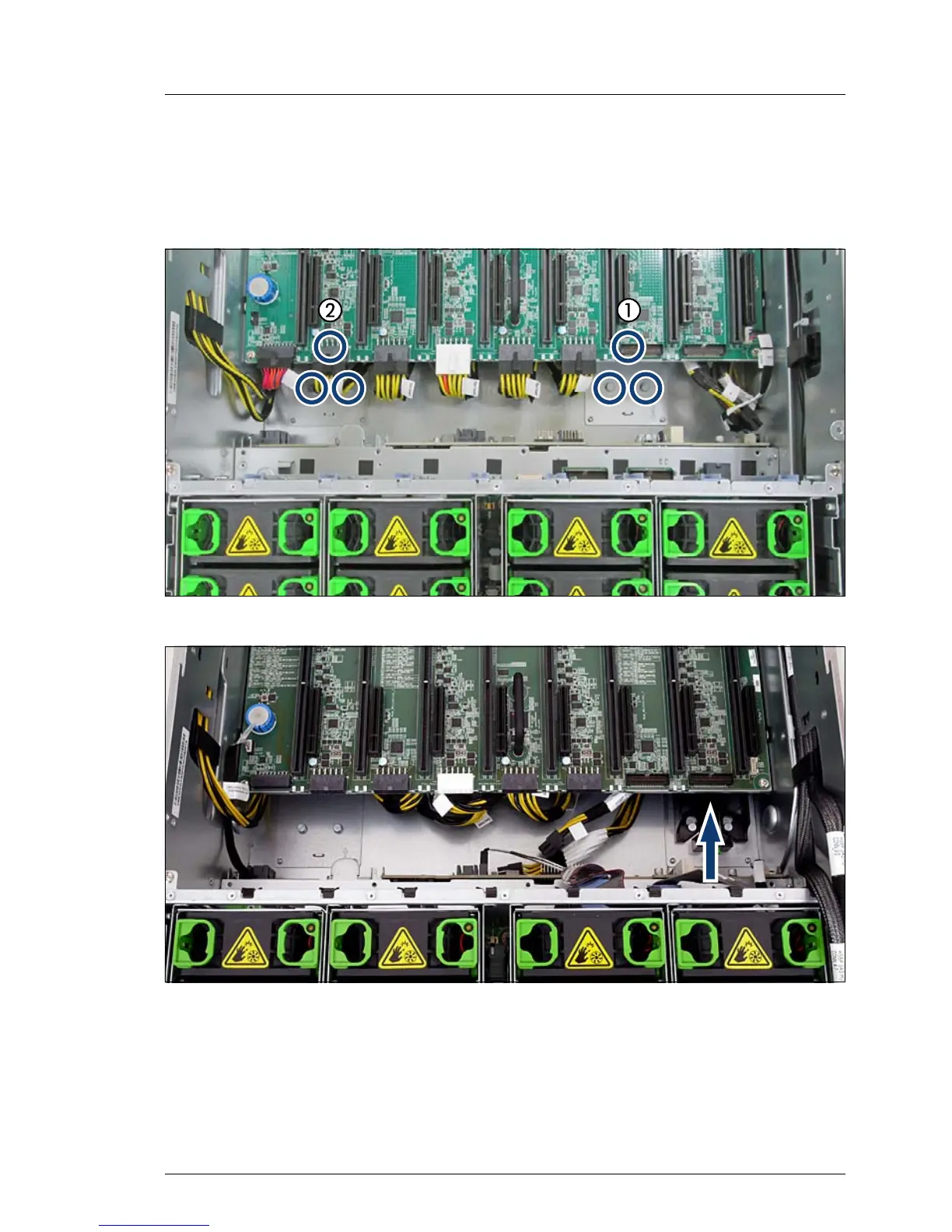

Figure 80: Shoulder screw caps of both FBUs
Figure 81: Installing the FBU holder
Ê Insert the FBU holder and place it onto the shoulder screw caps (see upper
figure).
Ê Slide the FBU holder in as far as it will go (see arrow).The shoulder screw
caps will lock in the narrow ends of the keyhole slots on the FBU holder.
