In order to permanently remove an operational HDD module that is part of a
RAID array from the server, you first need to delete the array using
ServerView RAID Manager or BIOS utility.
V CAUTION!
All data on all HDDs / SSDs in the array will be lost! Be sure to back
up your data before deleting a RAID array.
For further information, please refer to the "ServerView Suite RAID
Management" user guide and manuals of RAID controller.
7.3.2 Removing a 2.5-inch HDD / SSD / PCIe SSD
module

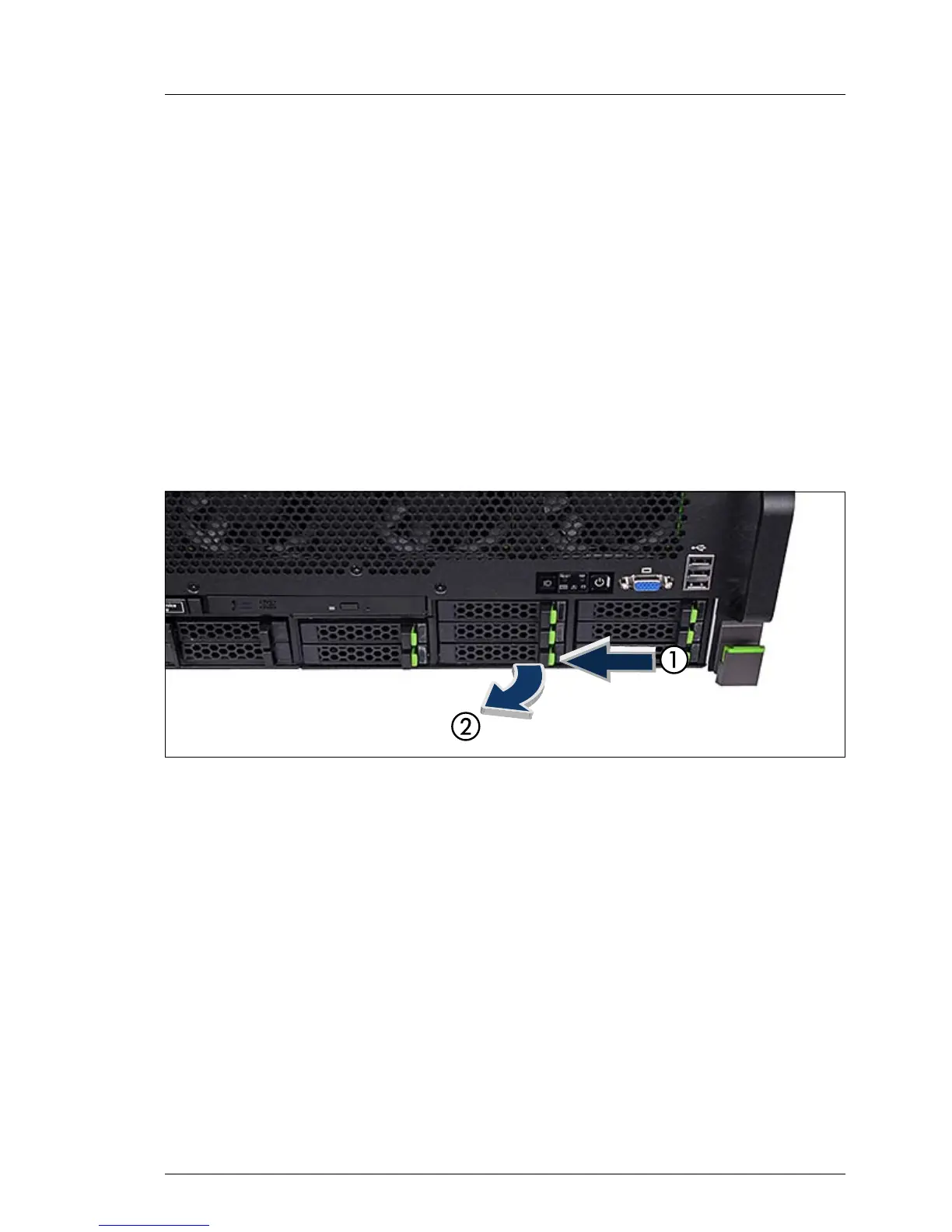

Figure 27: Disconnecting a 2.5-inch HDD / SSD / PCIe SSD module
Ê Press against the green locking clip (1) and fully open the locking lever (2).
I Thereby, the HDD / SSD / PCIe SSD module is pushed out of its
drive bay by about 1 cm and disconnected from the SAS / SATA
backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
I This is not necessary when removing a solid state drive.
Ê Pull the HDD / SSD / PCIe SSD module completely out of its bay.
