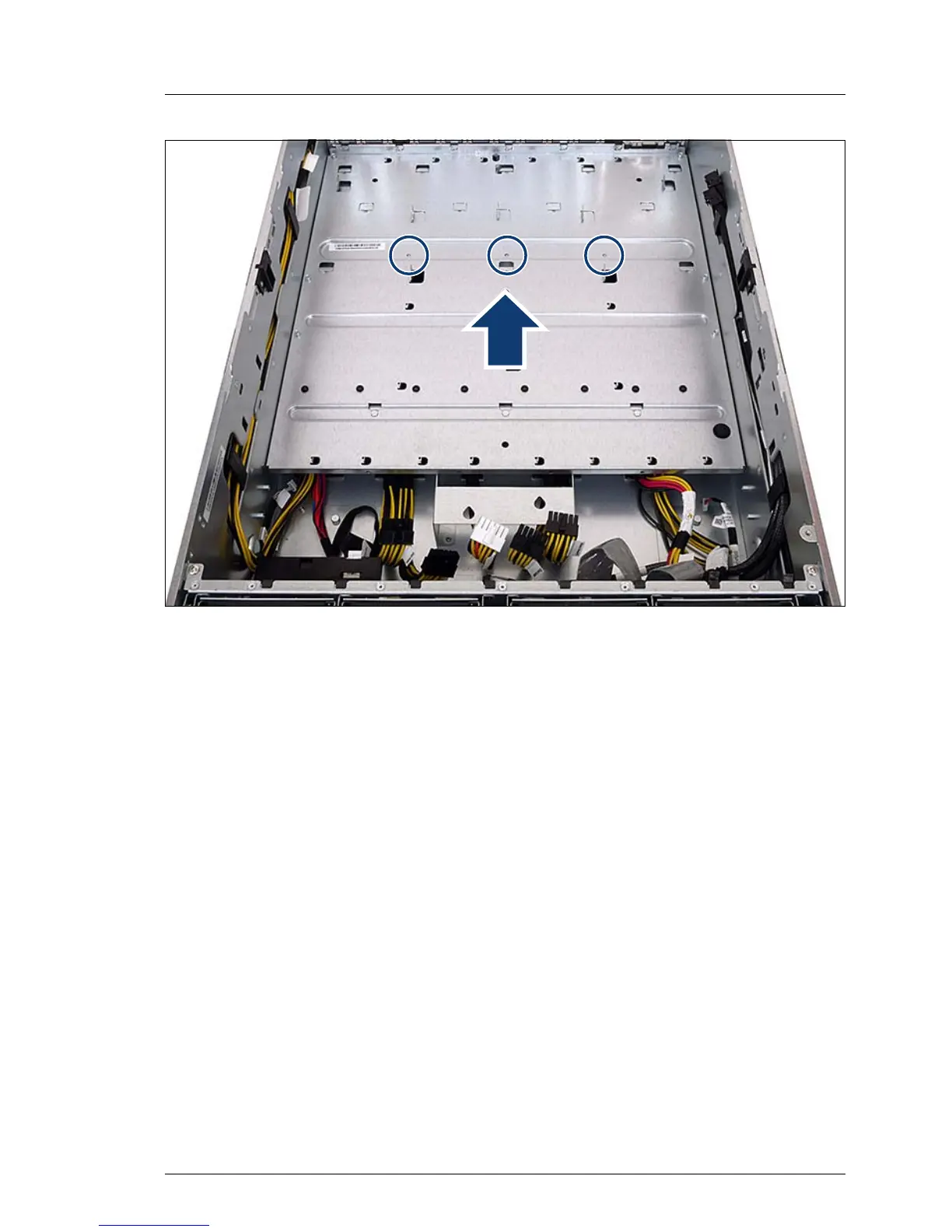

Figure 23: Installing the cover plate (C)
Ê Shift the cover plate in the direction of the arrow as far as it will go.
Ê Fasten the 3 screws (see circles).
6.5.4 Concluding steps
Ê "Installing the system board" on page 304
Ê Reconnect all cables to the system board. For a complete cabling overview,
please refer to section "List of used cables" on page 311.
Ê "Installing the memory rug" on page 307
Ê Reinstall all remaining system board components as shown in the related
sections:
– Mid-brace: see section "Removing the mid-brace" on page 232
– Memory boards: see section "Installing a memory module" on page 222
I Install all memory boards into their original slots.
