186 Upgrade and Maintenance Manual RX4770 M1
Expansion cards and backup units
9.8.2.7 Connecting the FBU cable to the SAS riser (D3216)

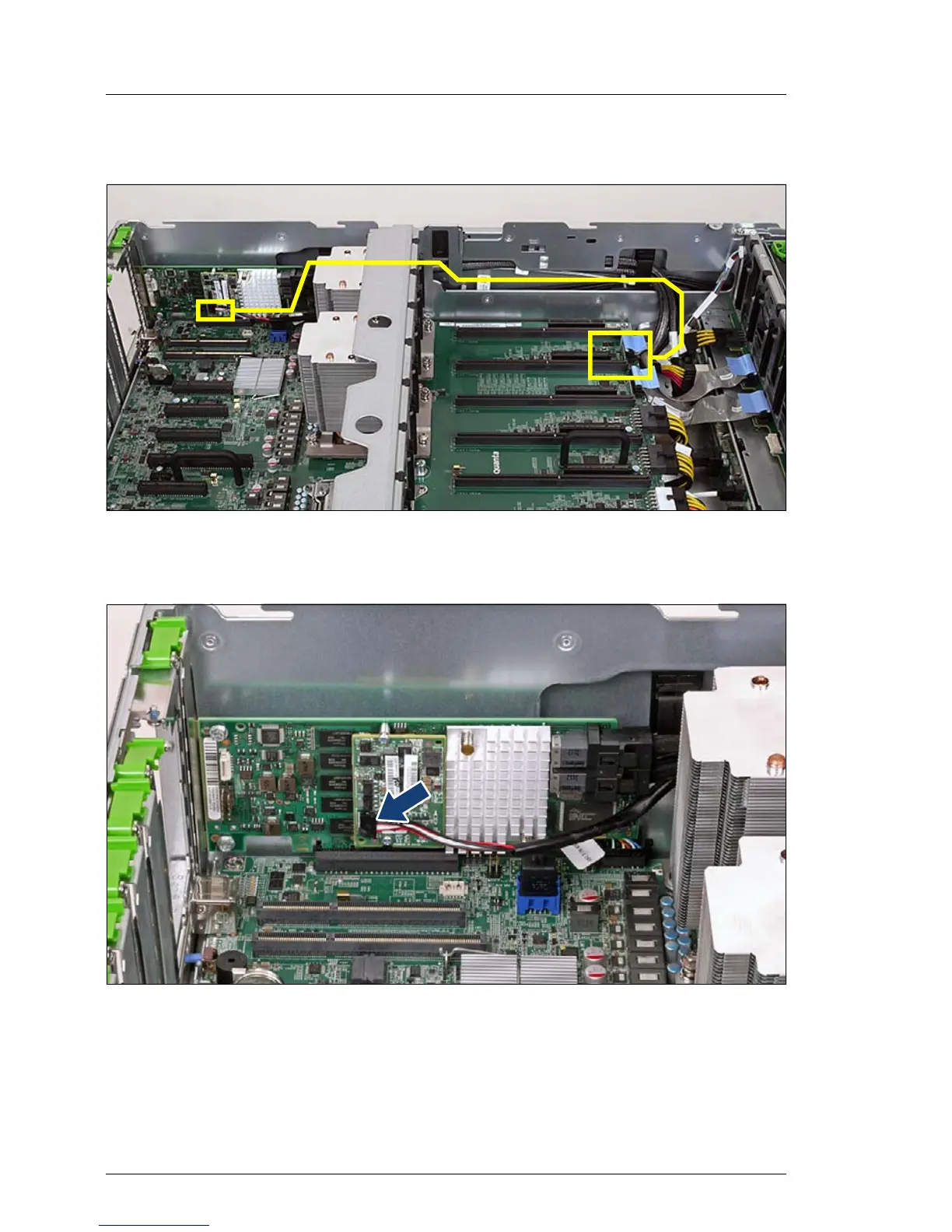

Figure 85: Routing the FBU cable to the SAS riser (D3216)
Ê Route the FBU cable as shown in the figure.
Figure 86: Connecting the FBU cable to the TFM on the SAS riser (D3216)
Ê Connect the FBU cable to the corresponding TFM connector (see arrow) on
the SAS riser.
