12.2.2 Replace the optical drive
Unlock the optical drive

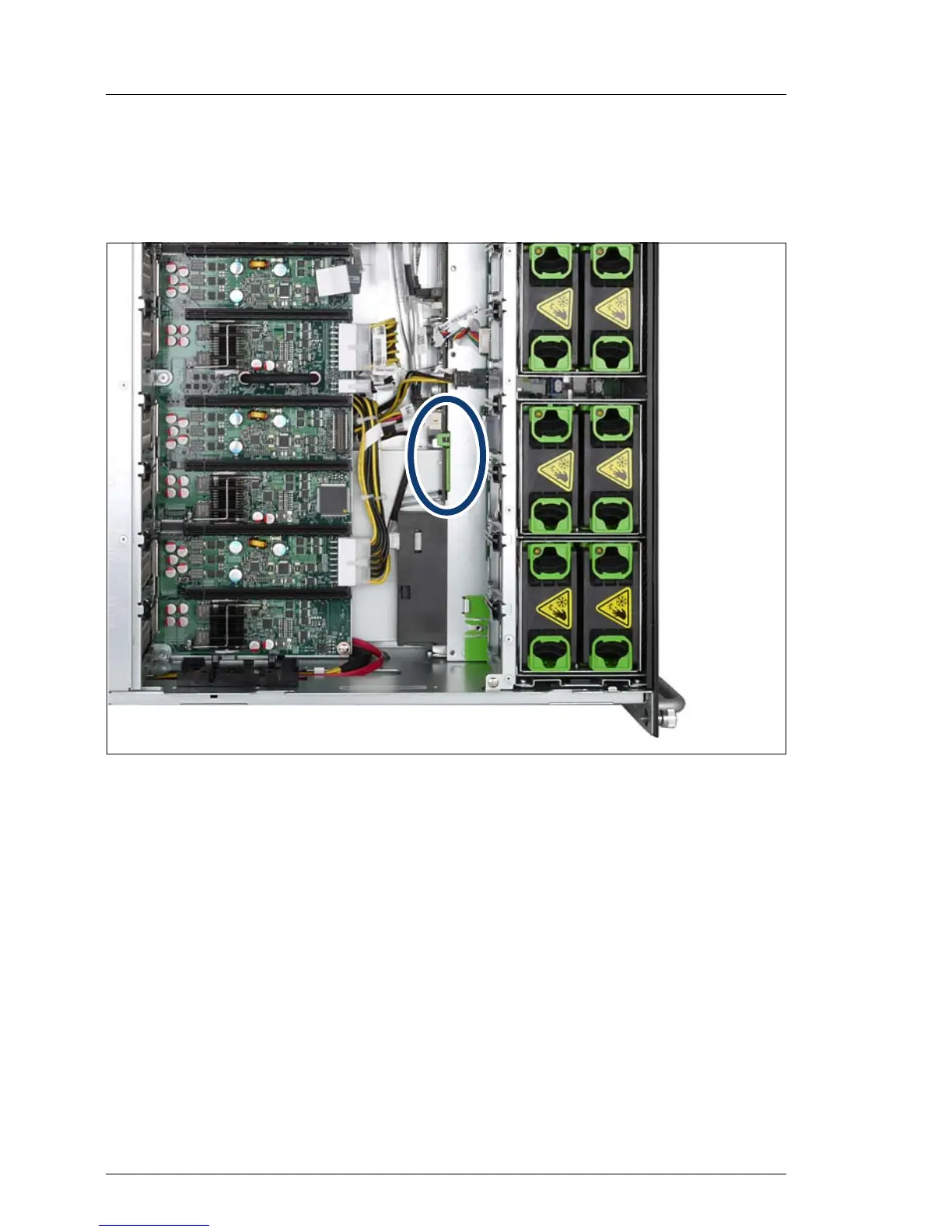

Figure 162: Location of the optical drive connector
The optical drive is connected to the hot-swap backplane via a green connector
(see oval and figure 164 on page 266).
