RX4770 M1 Upgrade and Maintenance Manual 233
Processors
11.2.2 Installing a processor

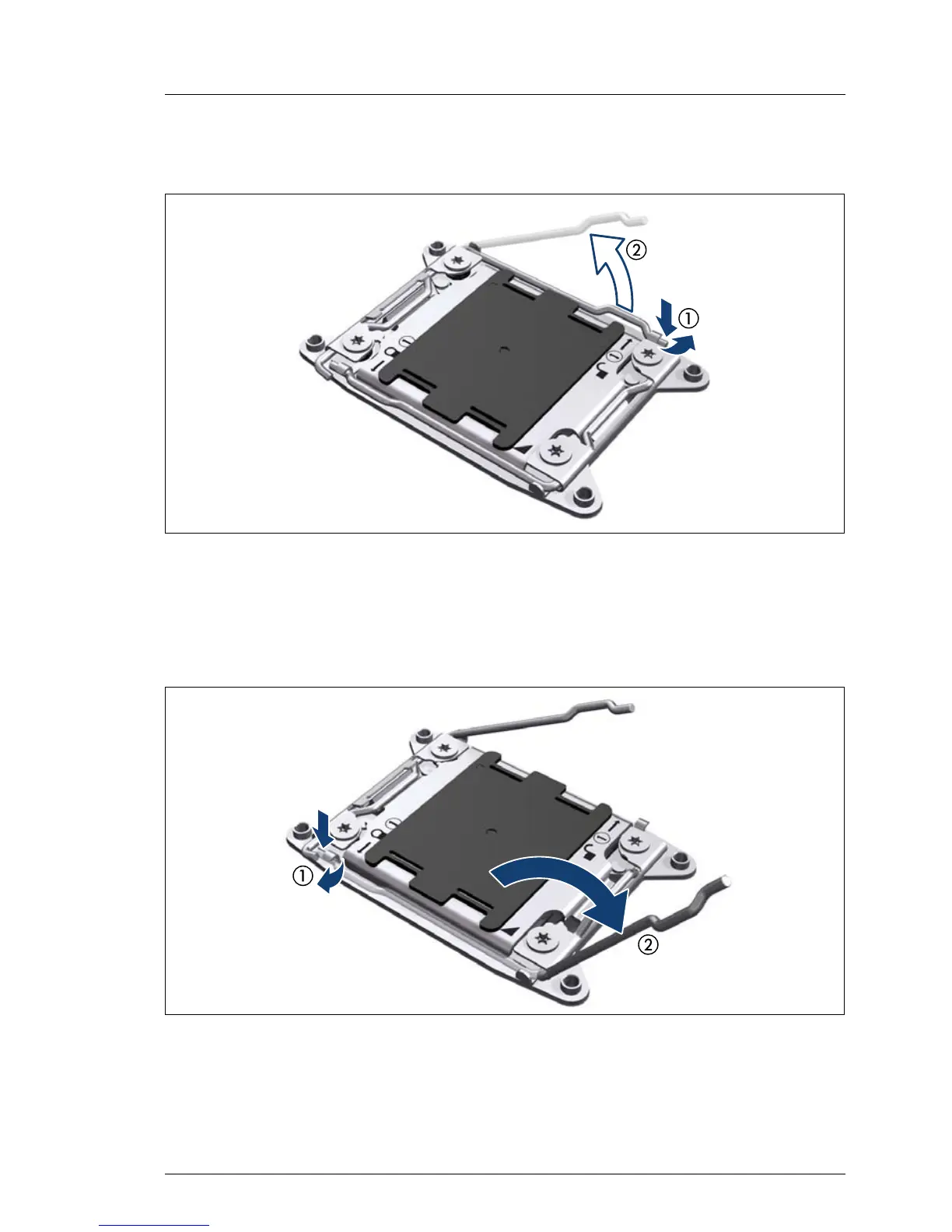

Figure 133: Opening socket release lever 1
Ê Unlatch the socket release lever marked Open 1st by pushing it down and
away from the socket (1).
Ê The socket release lever will slightly lift up (2).
Figure 134: Opening socket release lever 2
Ê Unlatch the socket release lever marked Close 1st by pushing it down and
away from the socket (1).
Ê Fully fold back the second socket release lever (2).
