120 Upgrade and Maintenance Manual RX4770 M1
Hard disk drives / solid state drives
7.6.3 Installing the HDD SAS backplane

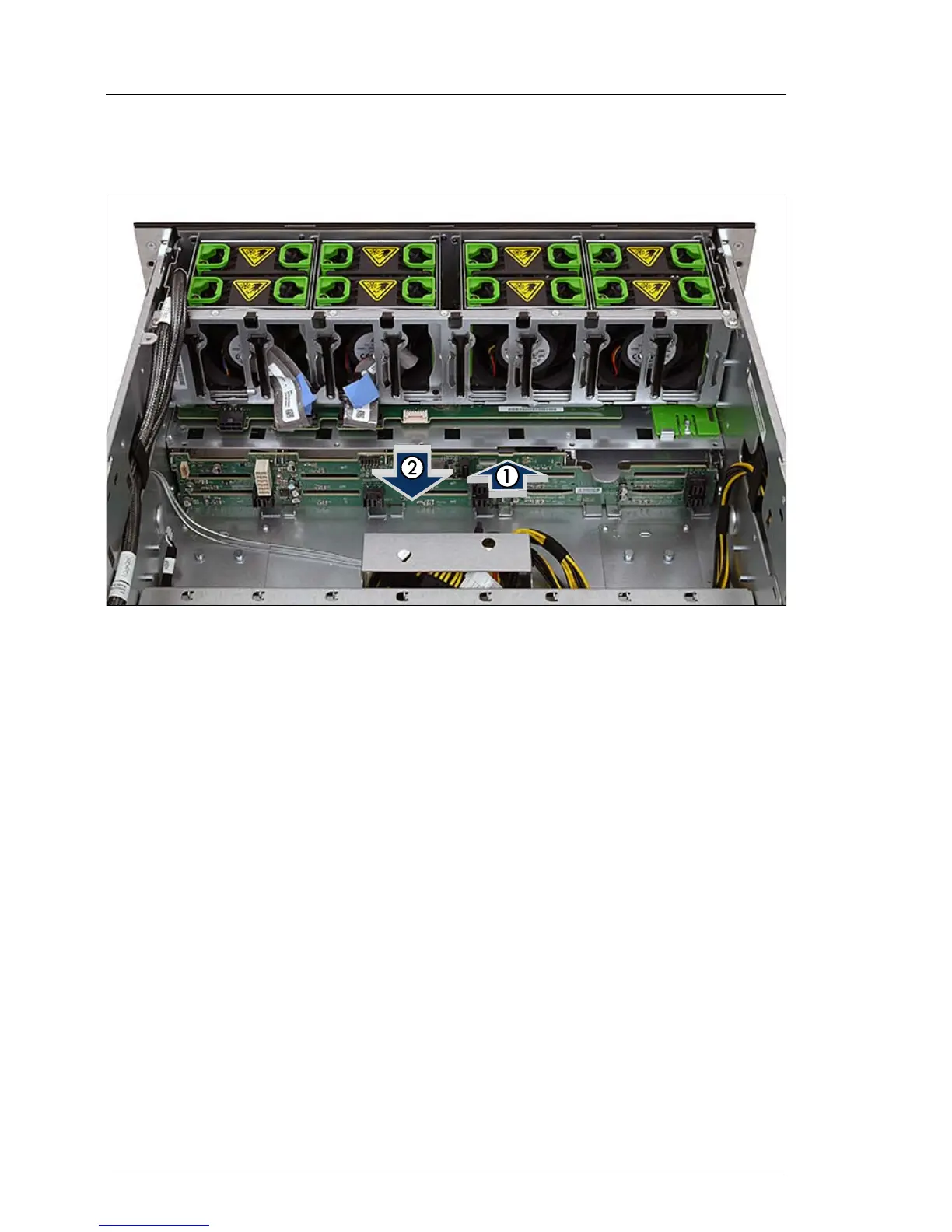

Figure 31: Installing the 12x 2.5-inch HDD SAS backplane (A)
Ê At a slight angle, fit the HDD backplane over the metal tabs of the chassis
(1).
Ê Fold in the HDD backplane (2).
