RX4770 M1 Upgrade and Maintenance Manual 119
Hard disk drives / solid state drives

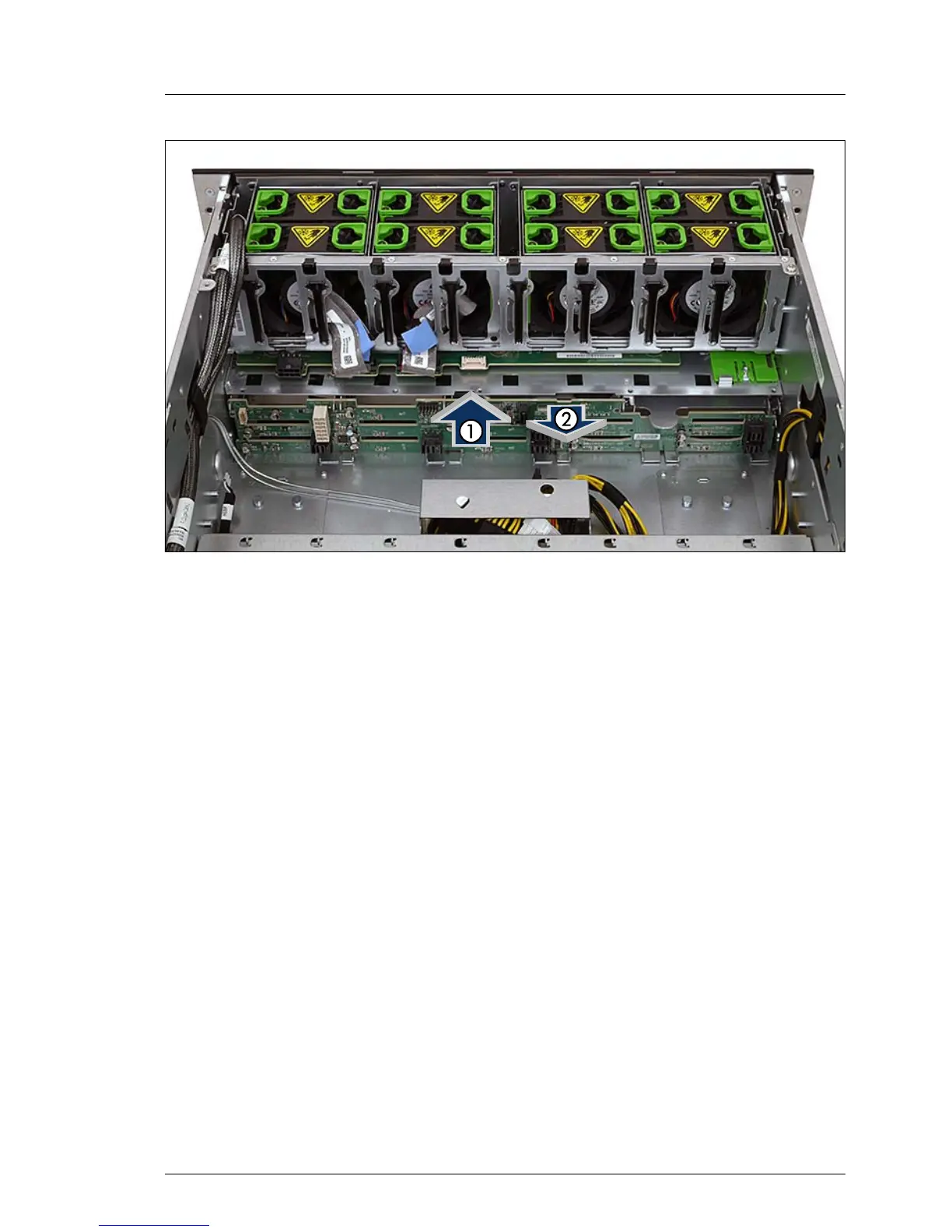

Figure 30: Removing the HDD backplane
Ê Lift up the HDD backplane a few millimeters (1).
Ê At a slight angle, unhinge the HDD backplane from the metal tabs and
remove it (2).
