130
Upgrade and Mai
ntenance Manual
RX4770
M1
System fans
8.3.3
Inst
alling the
fan backplane

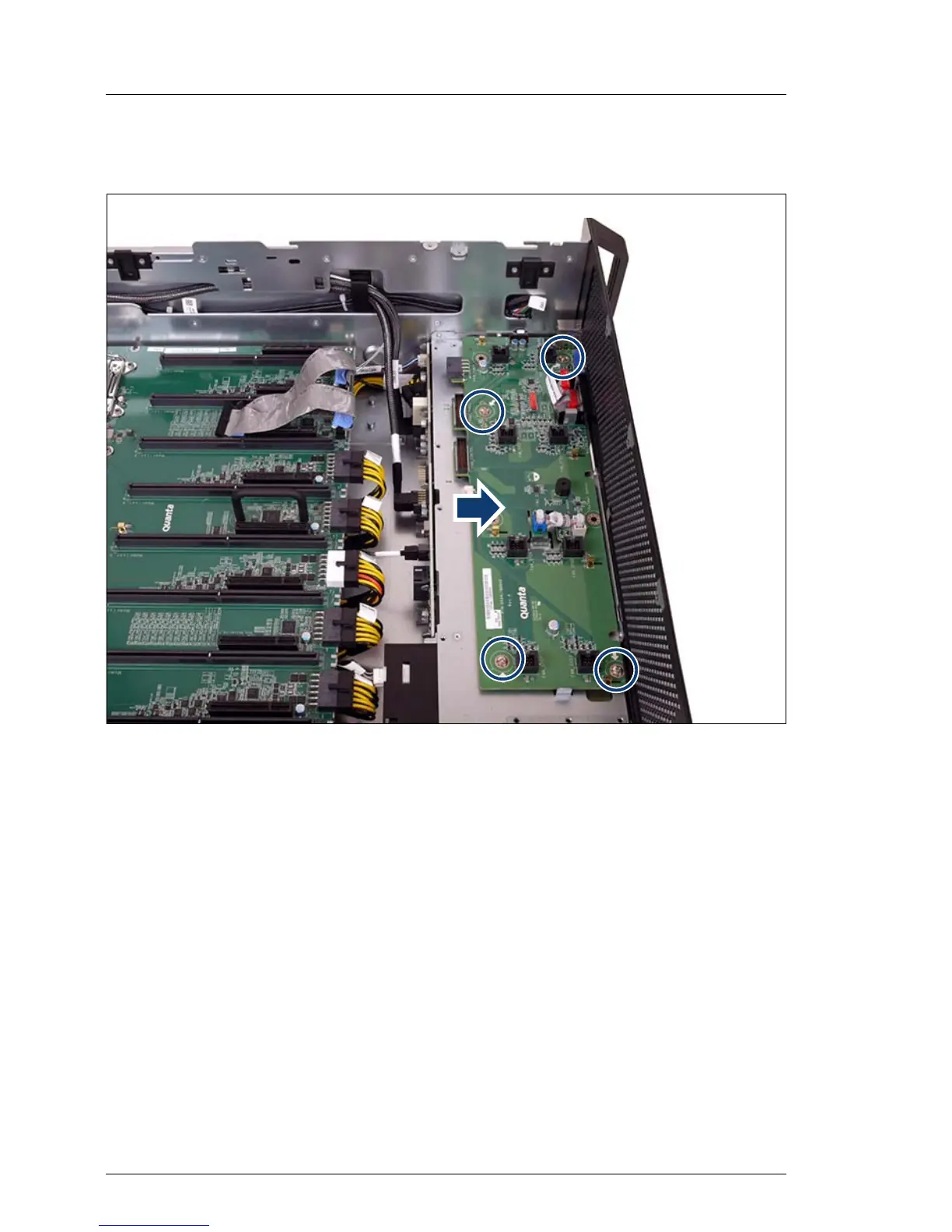

Figure 38: Instal
ling the fan backplane
Ê
Insert the fan
backplane into the housing and move it rightward into position
in the direction of the arrow
, then fix it with 4 screws (see circles
).
Ê
Install all
cables to the backplane.
I
For a complete cabling overview
, please refer to
section
"List of us
ed
cables" on p
age
31
1
.
129
131
