146
Upgrade and Mai
ntenance Manual
RX4770
M1
Exp
ansion cards and backu
p unit
s
9.3.2.2
Removing an
exp
ansion card
Ê
If applicable, disconnect internal cables from the exp
ans
ion card.

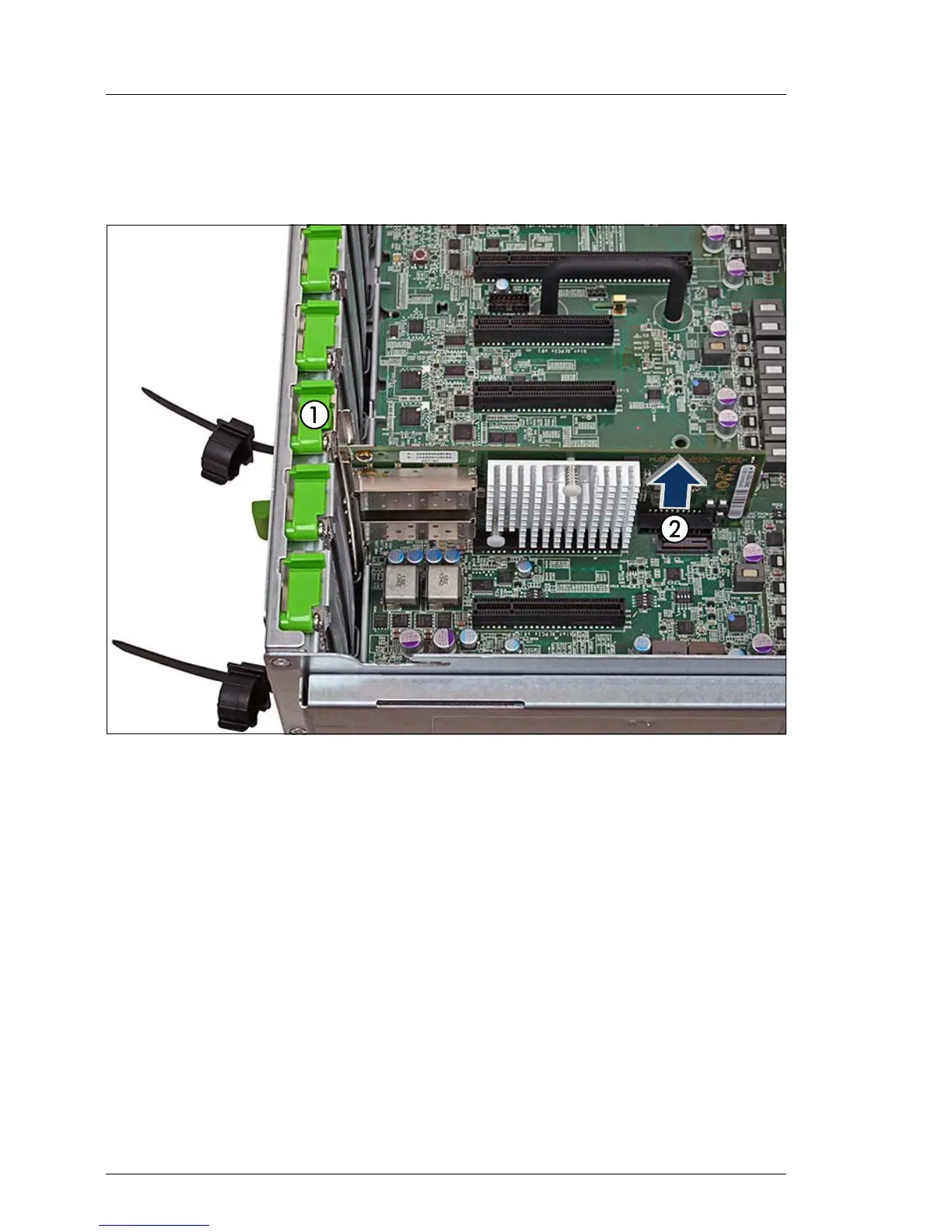

Figure 50: Rem
oving an ex
pansion card
Ê
If applicable,
"Removing an SFP+ transceiver module" on p
age
197
.
Ê
Open the slot lock (1).
Ê
Carefully remove the expansion card from it
s slot (2).
145
