14.5.3 Installing the system board
14.5.3.1 Installation of the system board

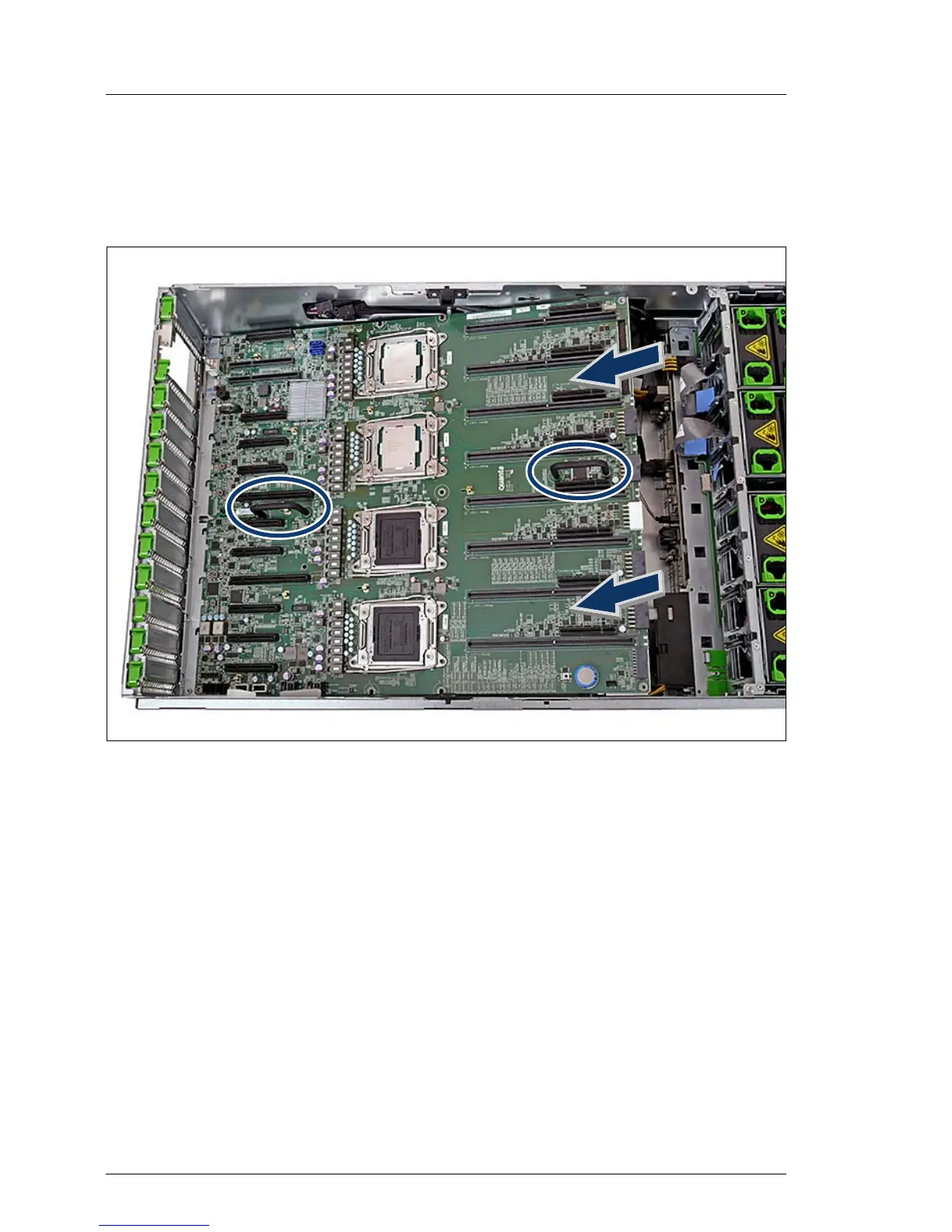

Figure 188: Installing the system board
Ê Hold the new system board by the handles (see ovals).
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis.
