Removing the system board

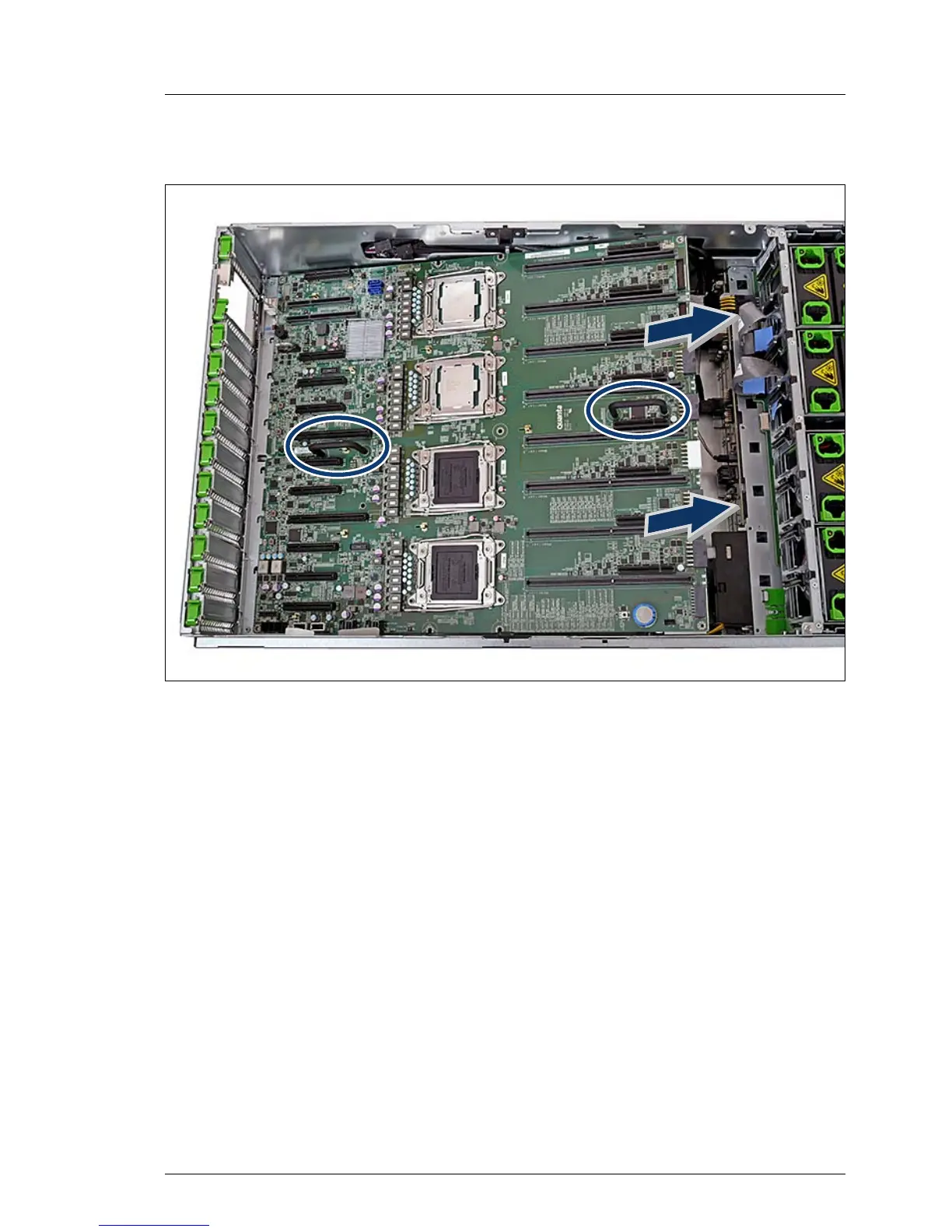

Figure 187: Removing the system board
Ê Grasp the system board by the handles (see ovals).
Ê Slide the system board slightly toward the front of the housing to lift it out.
V CAUTION!
Always take the system board with both hands.Don’t damage the EMI
springs which are essential to comply with applicable EMC
regulations and satisfy cooling requirements and fire protection
measures.
Ê Place the system board on an antistatic surface.
Ê "Removing the TPM" on page 294
