6.2.3 Installing a hot-plug power supply unit

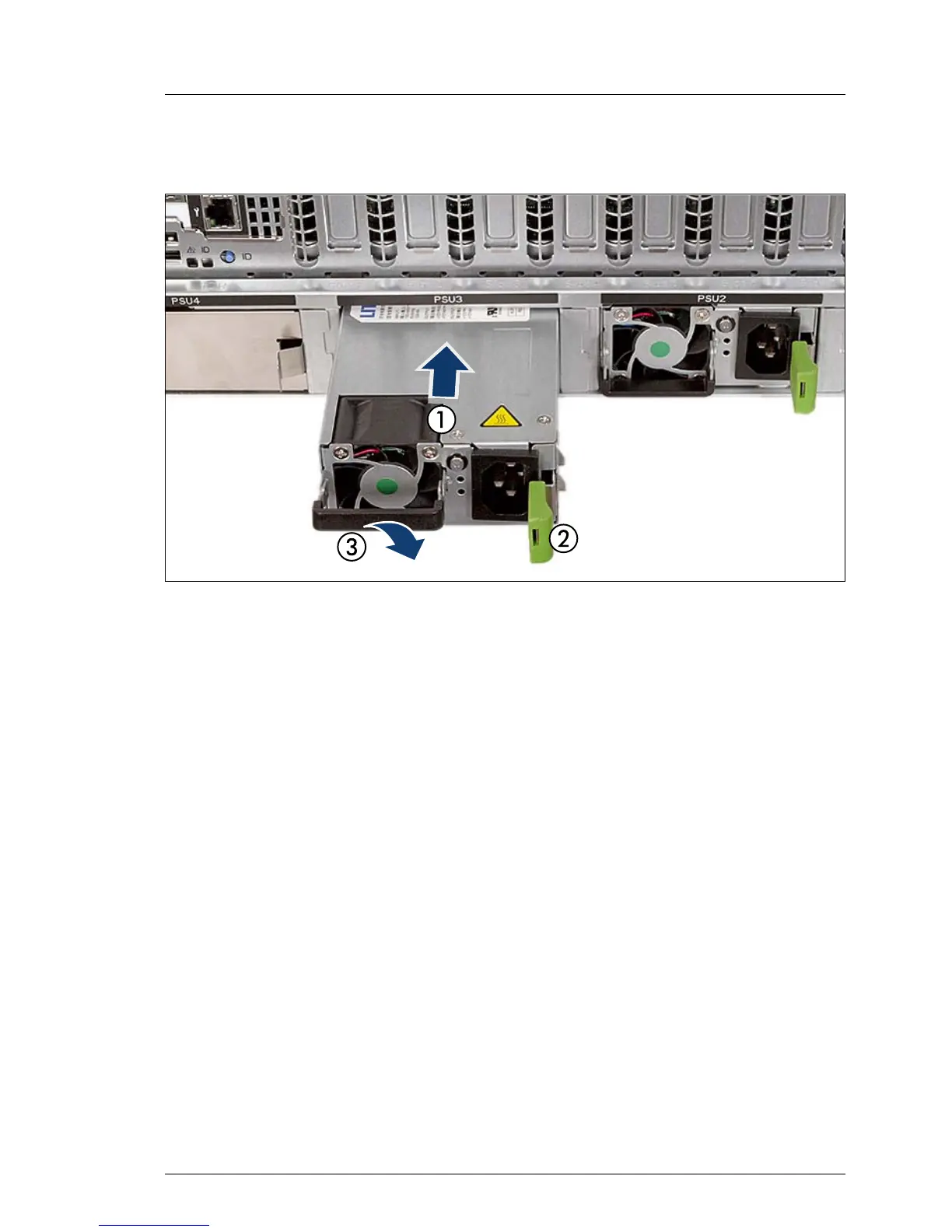

Figure 13: Installing the hot-plug power supply unit
Ê Push the power supply unit into its bay (1) as far as it will go until the release
latch snaps in place (2).
Ê Fold down the handle on the power supply unit (3).
V CAUTION!
Ensure that the power supply unit properly engages in its bay and is
locked in position in order to prevent it from sliding out of the chassis
during transportation.
6.2.4 Concluding steps
Ê "Connecting the server to the power source" on page 57
