RX4770 M1 Upgrade and Maintenance Manual 155
Expansion cards and backup units
9.5.1.2 Removing the BMC riser
Ê Remove all external cables from the BMC riser.

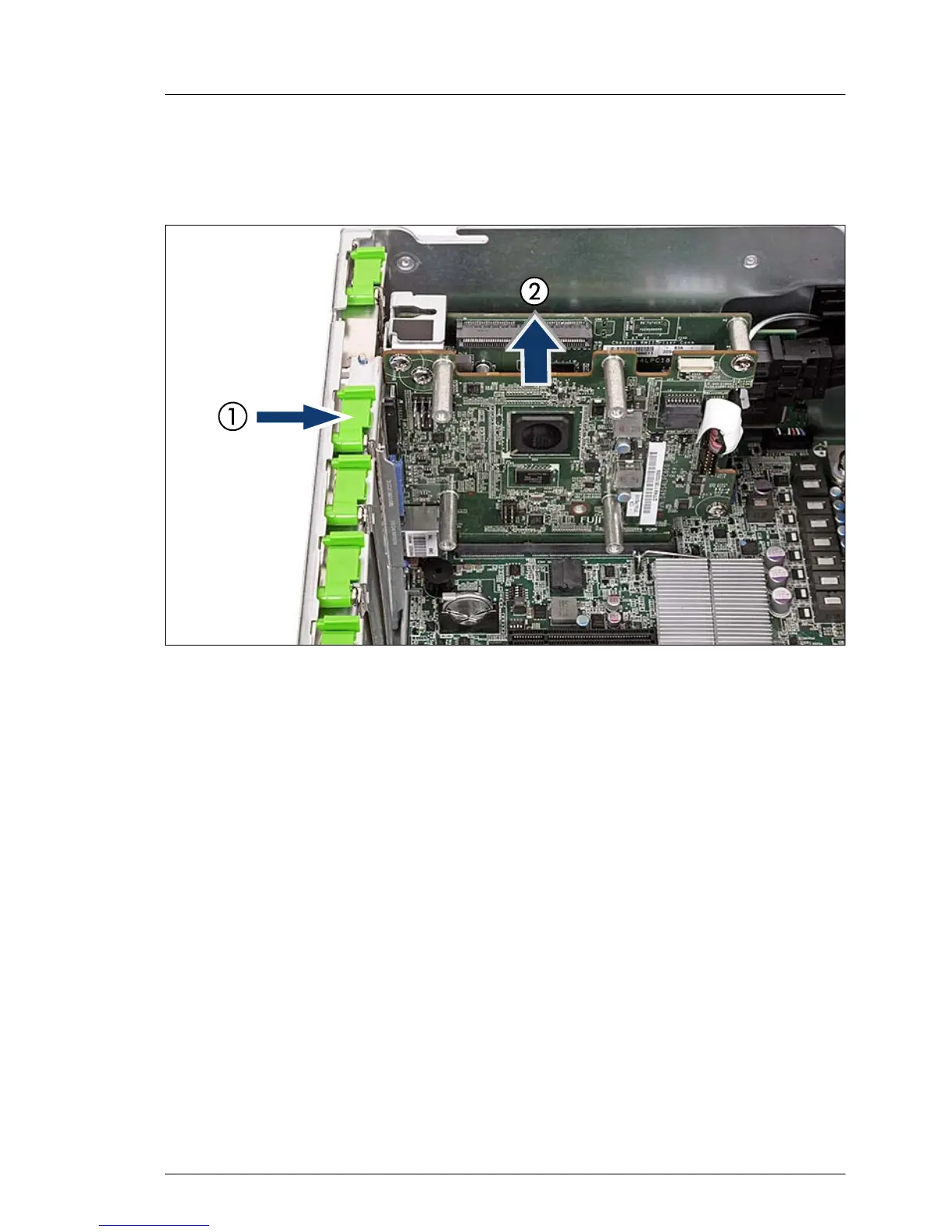

Figure 54: Removal of the BMC riser
Ê Open the slot lock (1).
Ê Carefully pull up on the BMC riser in a vertical motion and remove it from its
slot (2).
