Fujitsu Primergy RX4770 M1 - Installing the LAN Mezzanine Card

158 Upgrade and Maintenance Manual RX4770 M1
Expansion cards and backup units
Ê "Disconnecting power cords" on page 46
Ê "Getting access to the component" on page 48
Ê "Removing the BMC riser" on page 155
9.5.2.3 Installing the LAN Mezzanine card

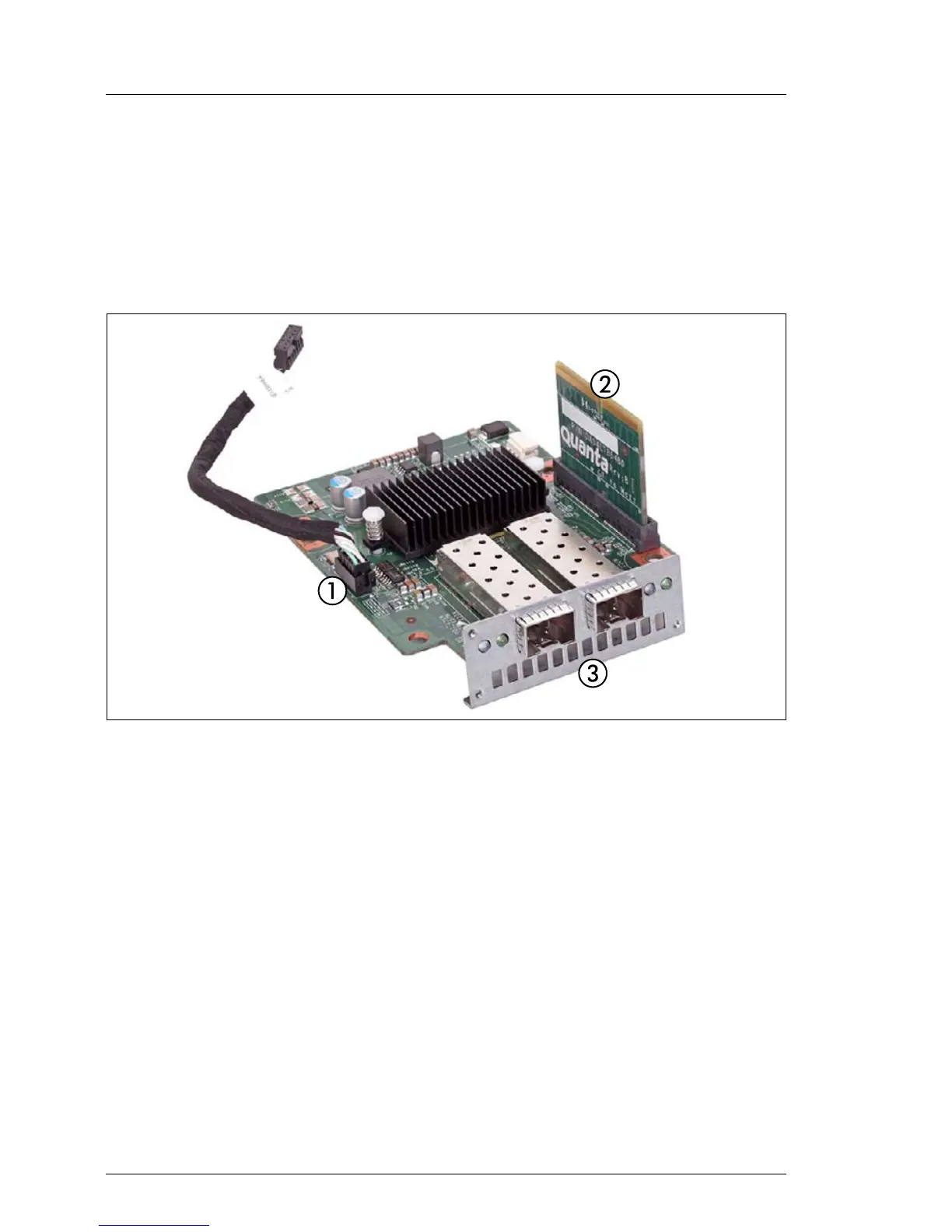

Figure 57: Installing the LAN Mezzanine card
Ê Plug in the cable into the dedicated connector (1) of the LAN Mezzanine
card.
Ê Plug in the adapter card (2) into the dedicated slot of the LAN Mezzanine
card.
Ê Shift the front bezel over the two optical connectors (3).
Connecting the LAN Mezzanine Card to the BMC riser
Ê Install the LAN Mezzanine card by turning it 180° and plugging it with its
adapter card into the corresponding slot of the BMC-riser (1).
