11.5.2.2 Installing the heat sink
– Carefully seat the heat sink on the four threaded holes of the processor
socket.
V CAUTION!
– Ensure that the screws on the heat sink are properly seated on the
threaded holes of the processor socket (see arrows in figure
below).
– Ensure that the heat sink cooling fins match the direction of the
airflow mark (see oval).

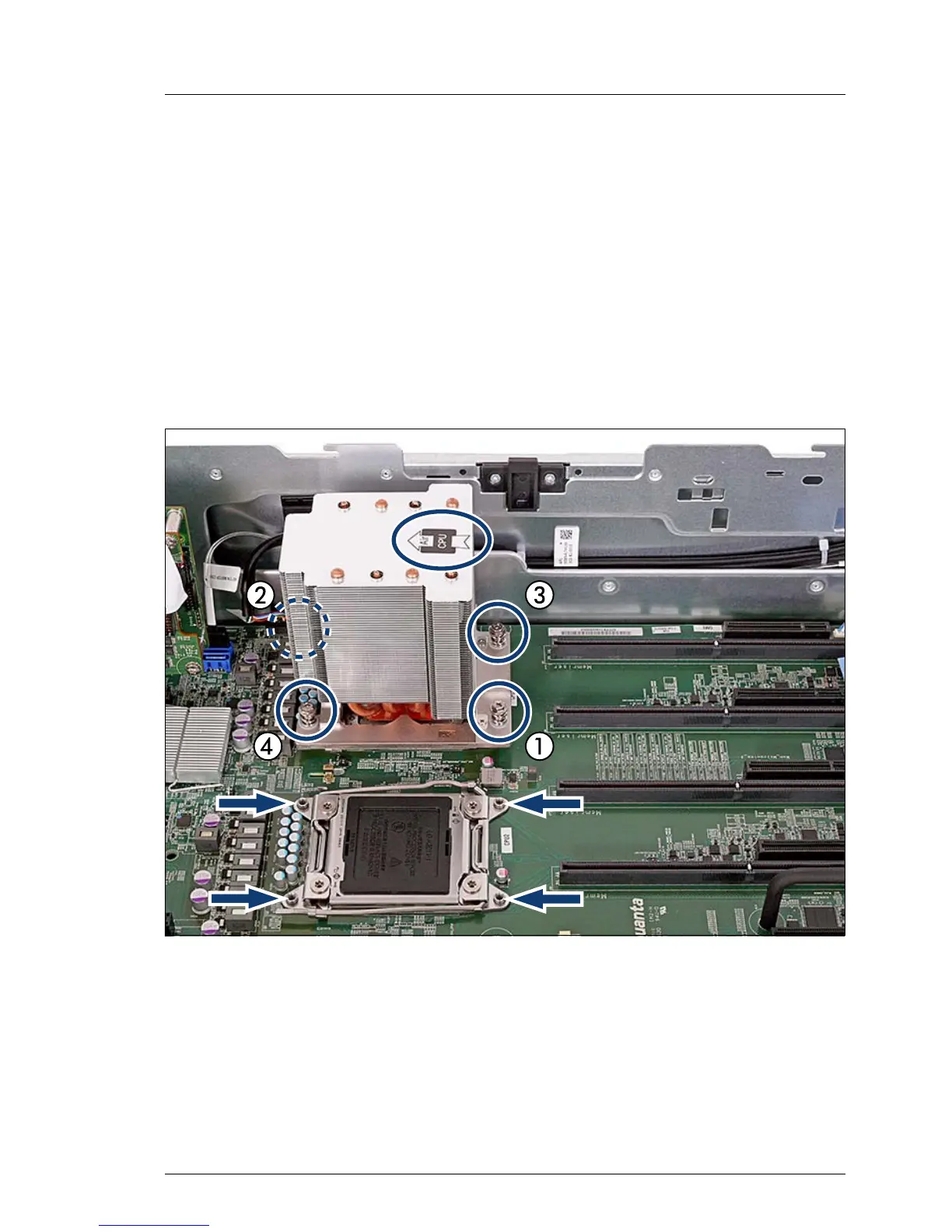

Figure 154: Installing the heat sink
Ê Fasten the four captive screws on the heat sink in a crossover pattern (1-4)
(screw torque: 1.0 Nm (FTS value) / 0.6 Nm (Japanese market).
