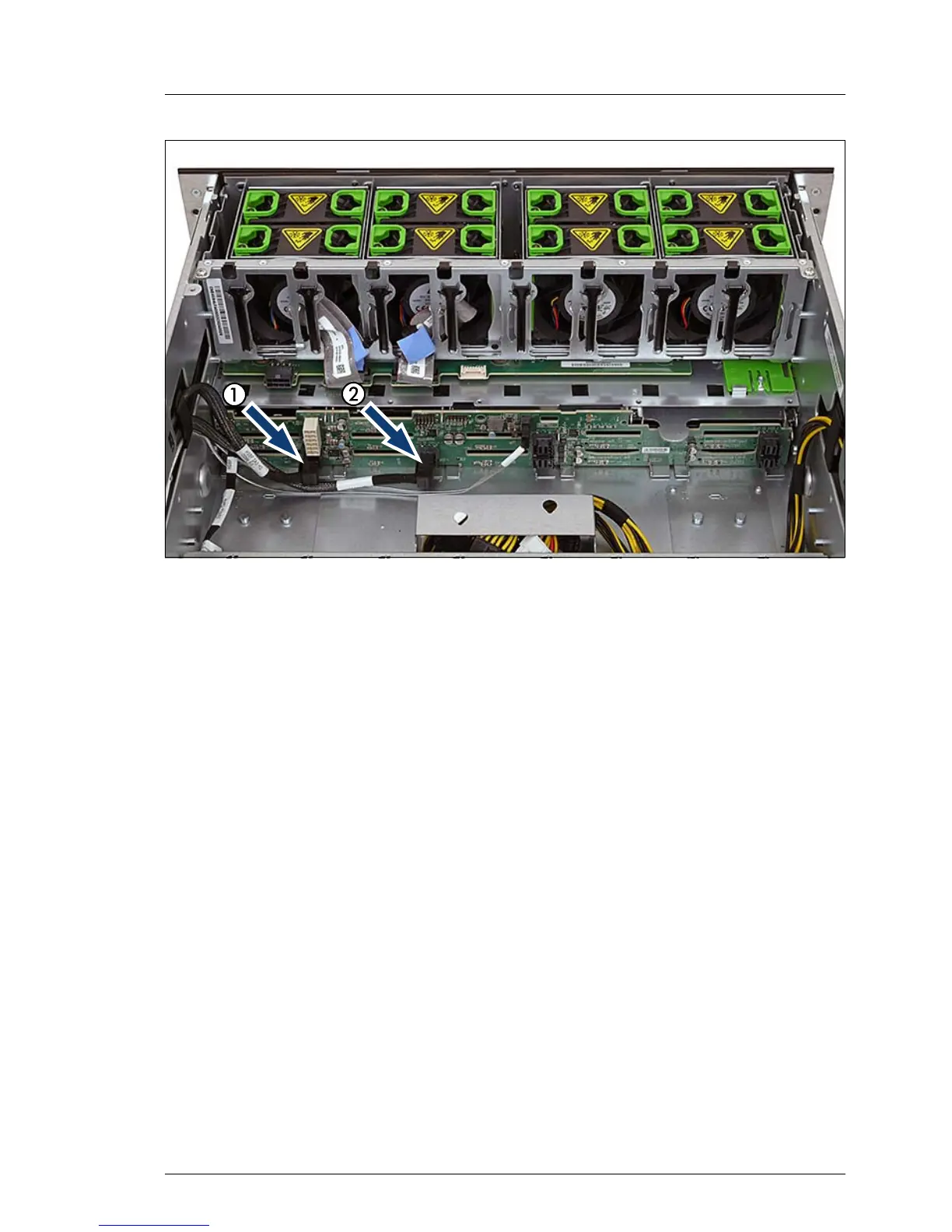

Figure 32: Connecting SAS & SATA cables to the HDD backplane
Ê Plug the SAS cable for the channels 0-3 onto its connector on the HDD
backplane (1).
Ê Plug the SAS cable for the channels 4-7 onto its connector on the HDD
backplane (2).
Ê Reconnect the other cables to the HDD backplane (see "Cable connection
diagram for RX4770 M1" on page 313).
7.6.4 Concluding steps
Ê "Installing the memory rug" on page 307
Ê "Installing memory boards" on page 223
Ê "Installing the optical drive" on page 266
Ê "Reassembling" on page 53
Ê "Installing 2.5-inch HDD / SSD / PCIe SSD modules" on page 110
Ê "Connecting the server to the power source" on page 57
Ê "Switching on the server" on page 58
Ê "Resuming BitLocker functionality" on page 80
