118 Upgrade and Maintenance Manual RX4770 M1
Hard disk drives / solid state drives
7.6.2 Removing the HDD backplane
Ê Disconnect all cables from the HDD backplane.

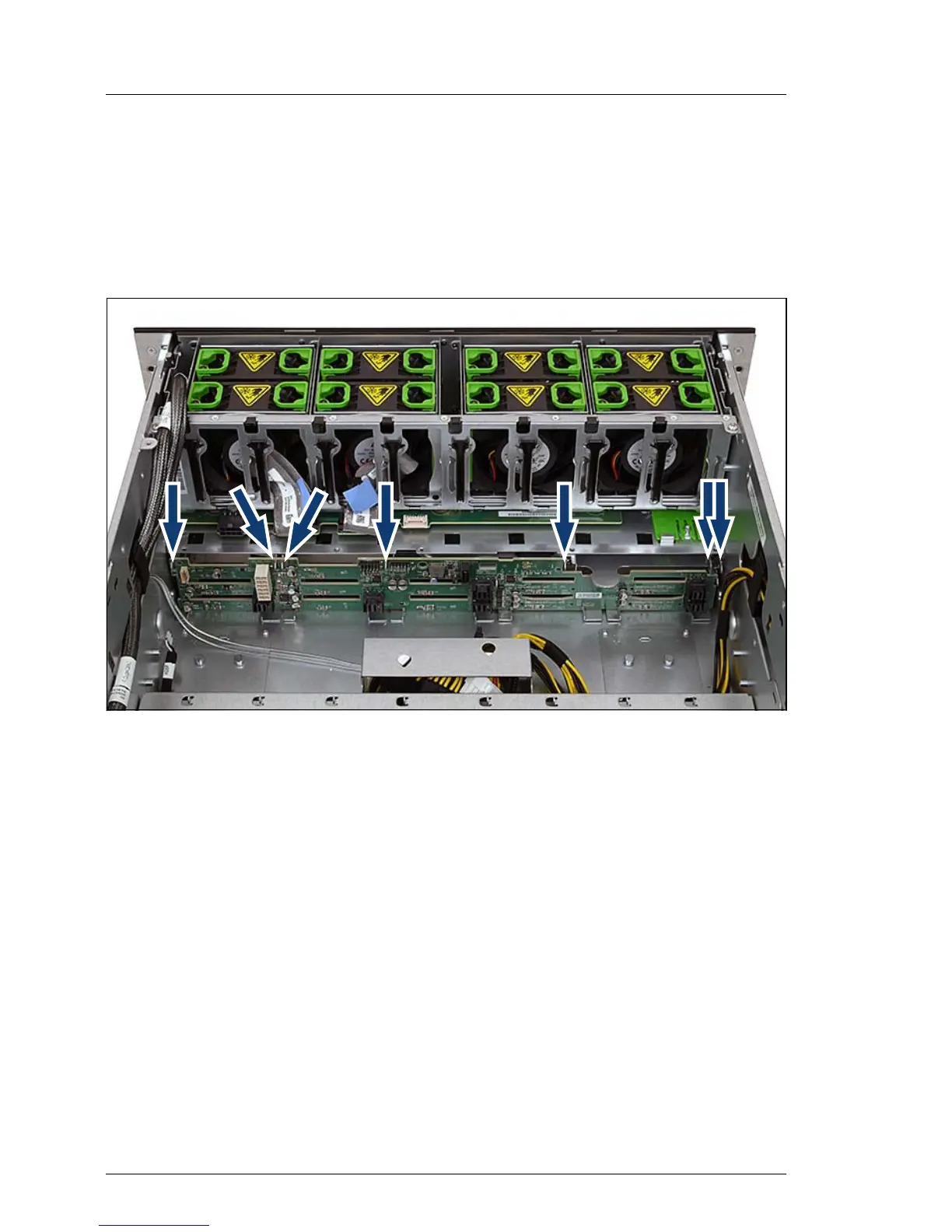

The following figure shows the metal tabs by which the HDD backplane is kept
in place:
Figure 29: Hooks of the HDD SAS backplane
