RX4770 M1 Upgrade and Maintenance Manual 197
Expansion cards and backup units
9.9.2 Removing an SFP+ transceiver module
For Fiber Channel over Ethernet (FCoE) configurations, the ethernet server
adapter is equipped with one or two SFP+ (small form-factor pluggable)
transceiver modules.

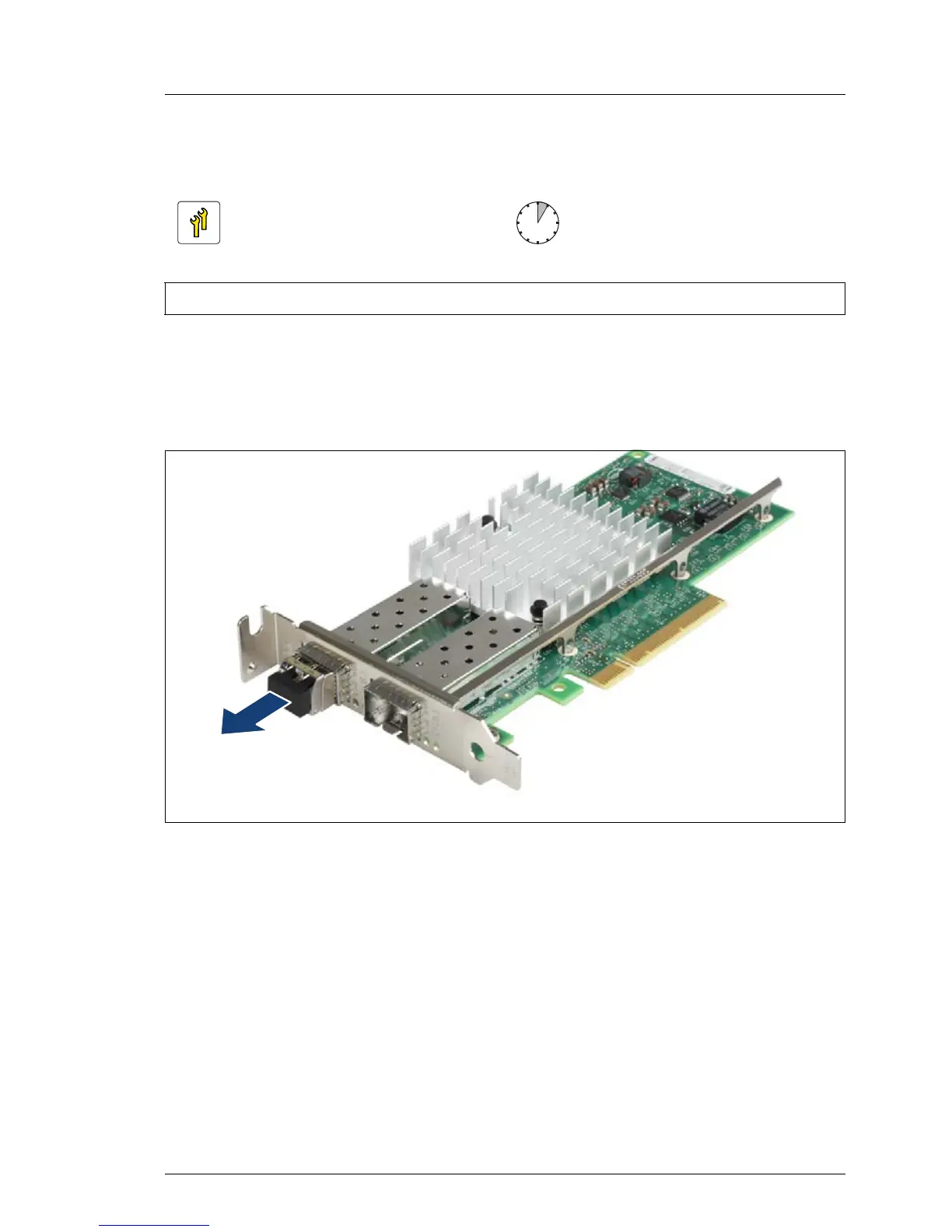

Figure 97: Removing the protective optical port plug
Ê If present, remove the protective optical port plug from the SFP+ transceiver
module.
V CAUTION!
Save the protective port plug for future use.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: Phillips PH2 / (+) No. 2 screw driver
