16.3.2.2 Rear side indicators and controls

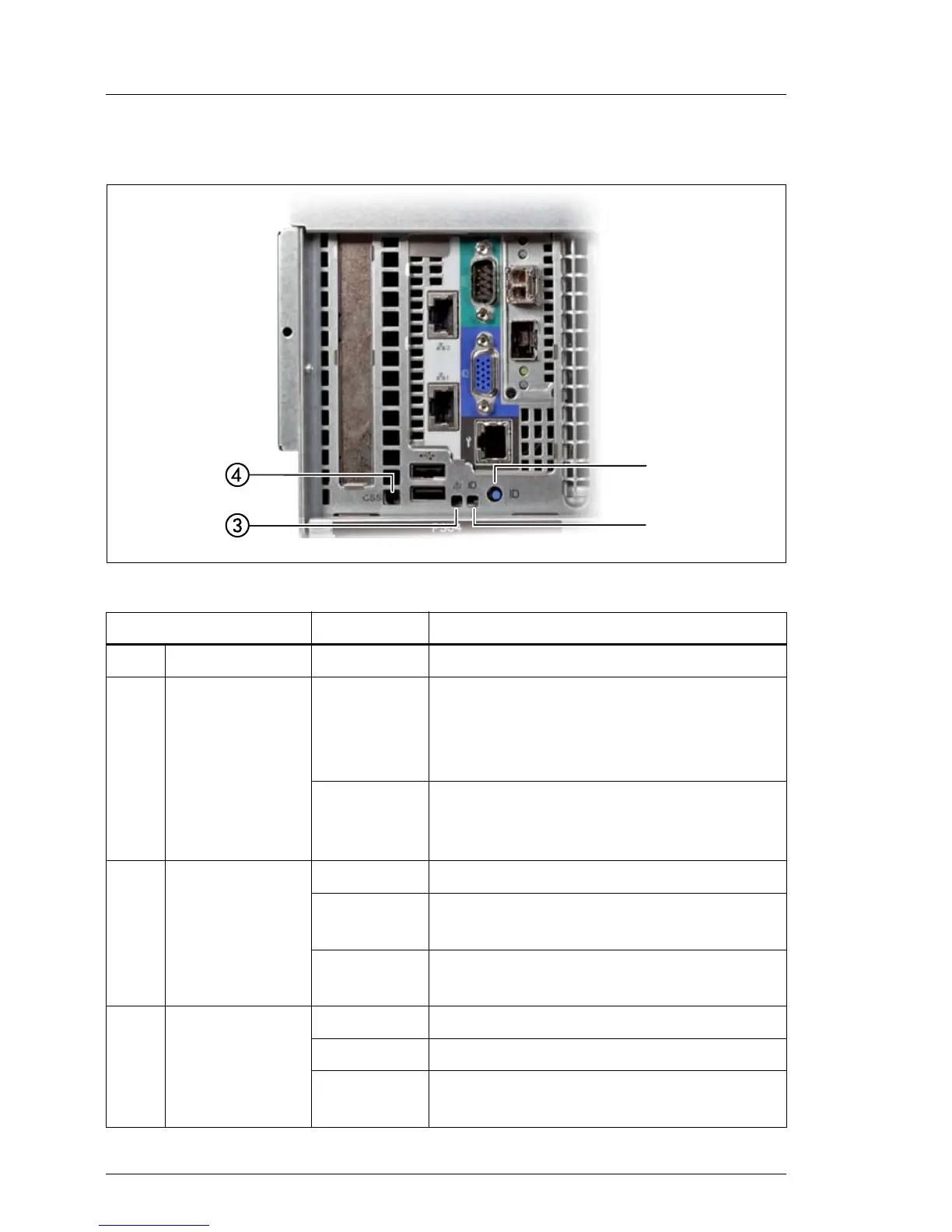

Figure 199: Rear side indicators and controls
Indicator / Control Status Description
1 ID button - - - - - Lights up ID indicator LEDs if pressed
2 ID indicator
blue on
server has been highlighted using
ServerView Operations Manager, iRMC
web frontend or the ID button on the
front panel for easy identification
blue
flashing
server has been highlighted using IRMC
(AVR) when local VGA off for easy
identification
3
Global error
indicator
off no critical event (non CSS component)
orange on
prefailure detected (non CSS
component)
orange
flashing
non CSS component failure
4 CSS indicator
off no critical event (CSS component)
orange on prefailure detected (CSS component)
orange
flashing
CSS component failure
