Rear side LAN indicators

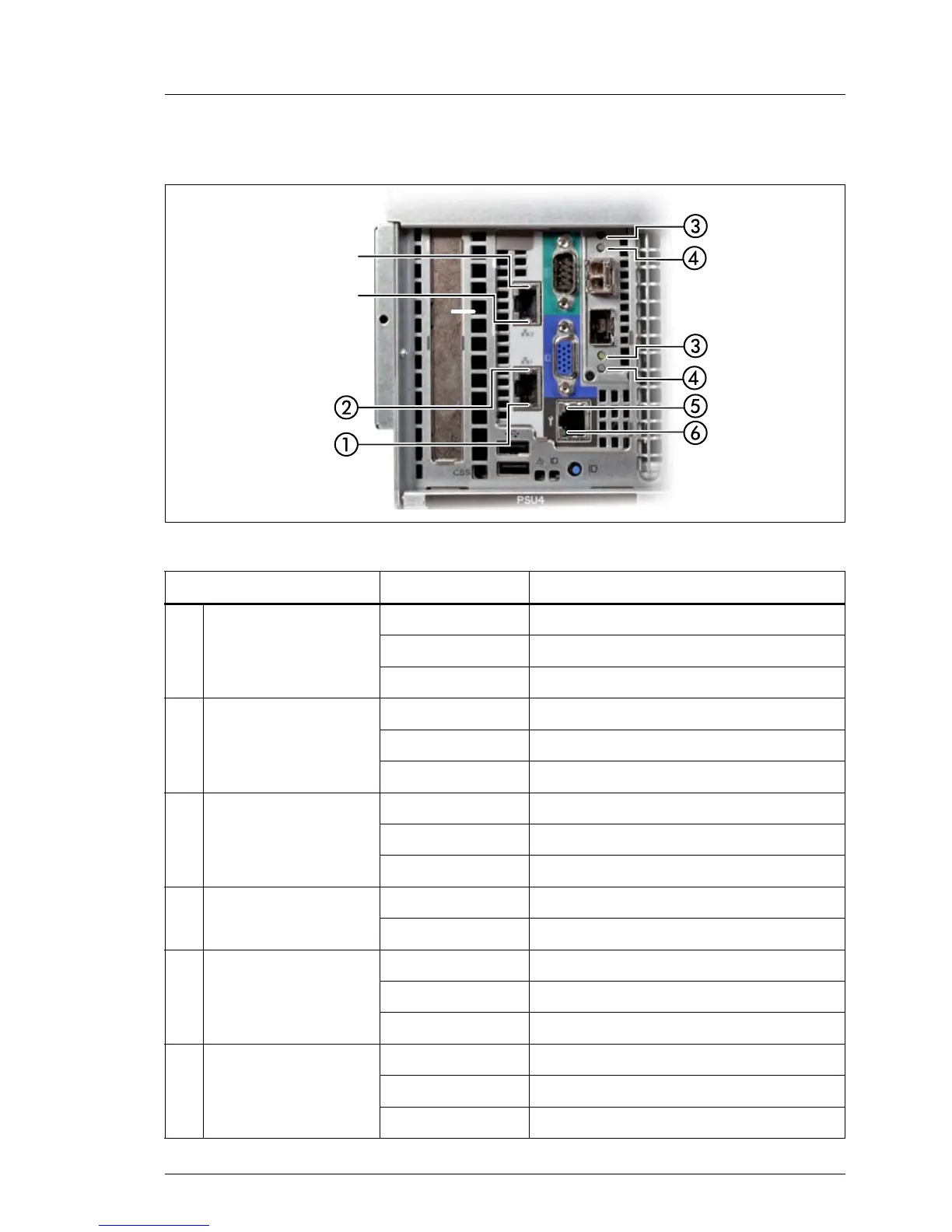

Figure 200: Rear side LAN indicators (on BMC riser)
Indicator Status Description
1 LAN link/transfer
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
2
LAN speed
standard LAN
yellow on transfer rate of 1 Gbit/s
green on transfer rate of 10 Gbit/s
off transfer rate of 100 Mbit/s
3Act/Link LED
green on link and no activity
off no link
green flashing link and activity
4 10G LED
off transfer rate of 1 Gbit/s
blue on transfer rate of 10 Gbit/s
5
LAN speed
Management LAN
yellow on transfer rate of 1 Gbit/s
green on transfer rate of 100 Mbit/s
off transfer rate of 10 Mbit/s
6 LAN link/transfer
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
