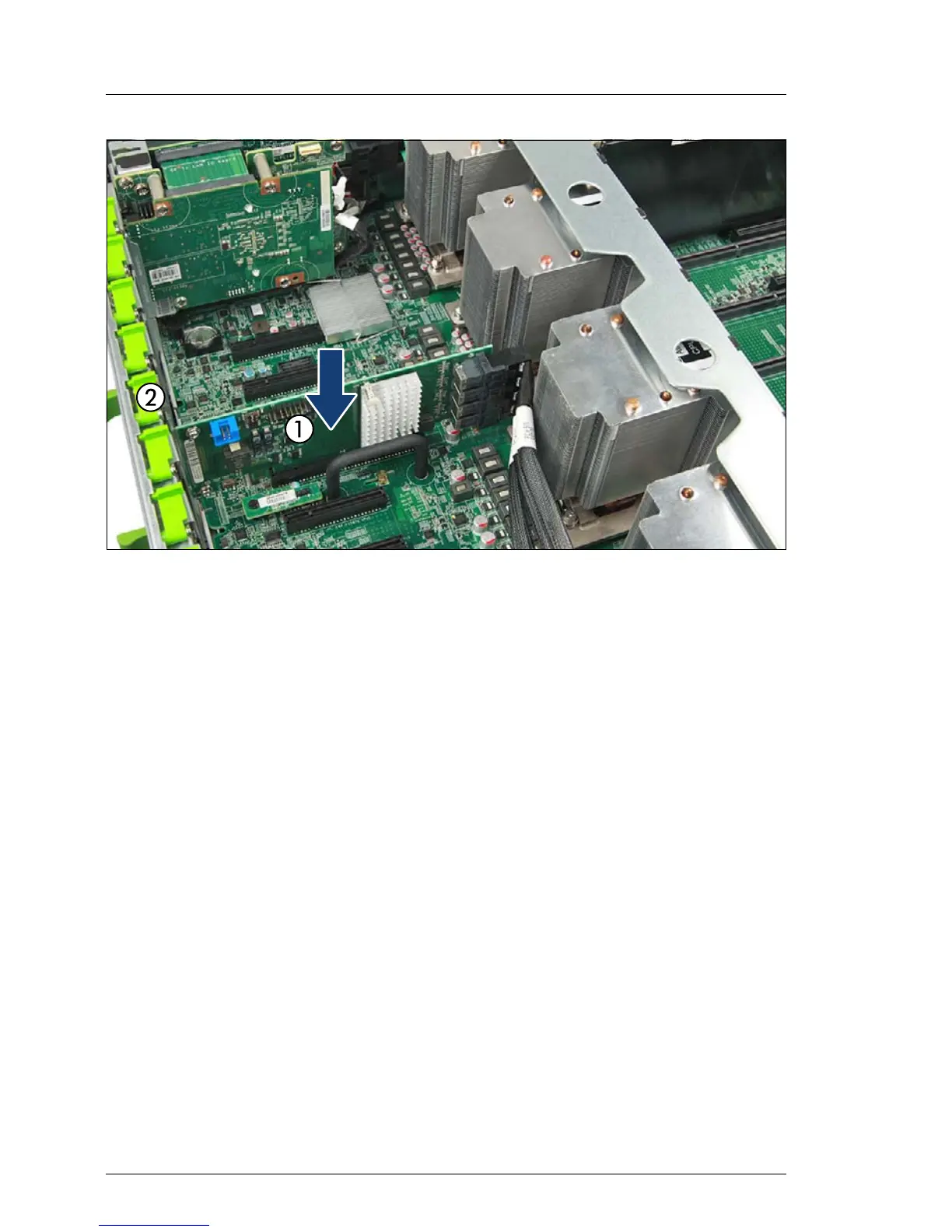

Figure 70: Installing the PCIe SW card
Ê Carefully insert the PCIe SW card into the desired PCI slot and press down
firmly until it is fully seated in the slot (1).
Ê Close the slot lock (2).
9.7.1.5 Concluding steps
Ê Connect the power cables to the system board.
Ê "Installing the LSD module" on page 262
Ê "Installing the mid-brace" on page 239
Ê "Installing the memory rug" on page 307
Ê "Installing memory boards" on page 223
Ê "Reassembling" on page 53
Ê "Connecting the server to the power source" on page 57
Ê "Switching on the server" on page 58
Ê "Enabling SVOM boot watchdog functionality" on page 74
Ê "Resuming BitLocker functionality" on page 80
