RX4770 M1 Upgrade and Maintenance Manual 241
Processors
11.3.2 Removing a processor
Ê Remove the desired processor heat sink as described in section "Removing
processor heat sinks" on page 254.

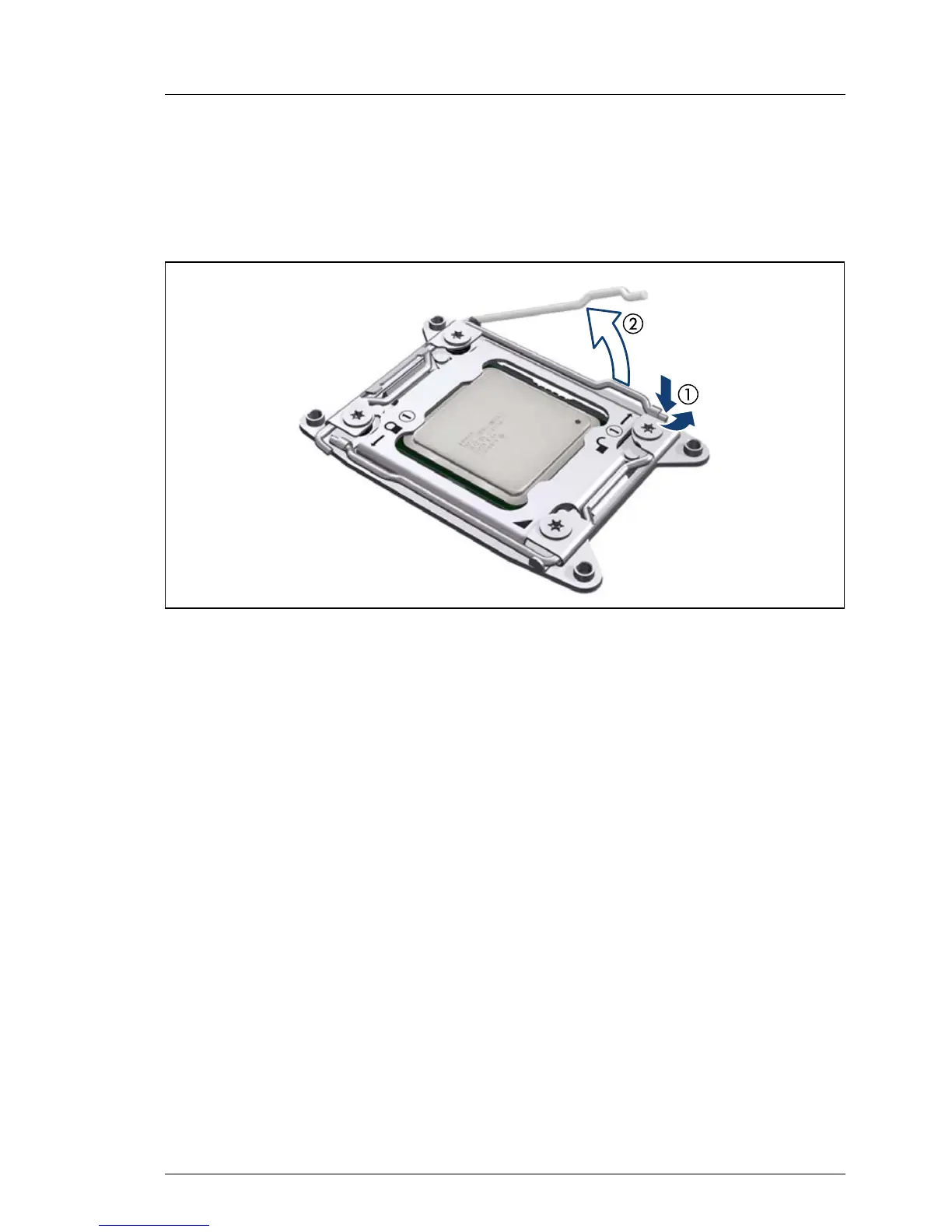

Figure 143: Opening socket release lever 1
Ê Unlatch the socket release lever marked Open 1st by pushing it down and
away from the socket (1).
Ê The socket release lever will slightly lift up (2).
