16.3.4 Indicators on the hot-plug HDD/SSD/PCIe SSD

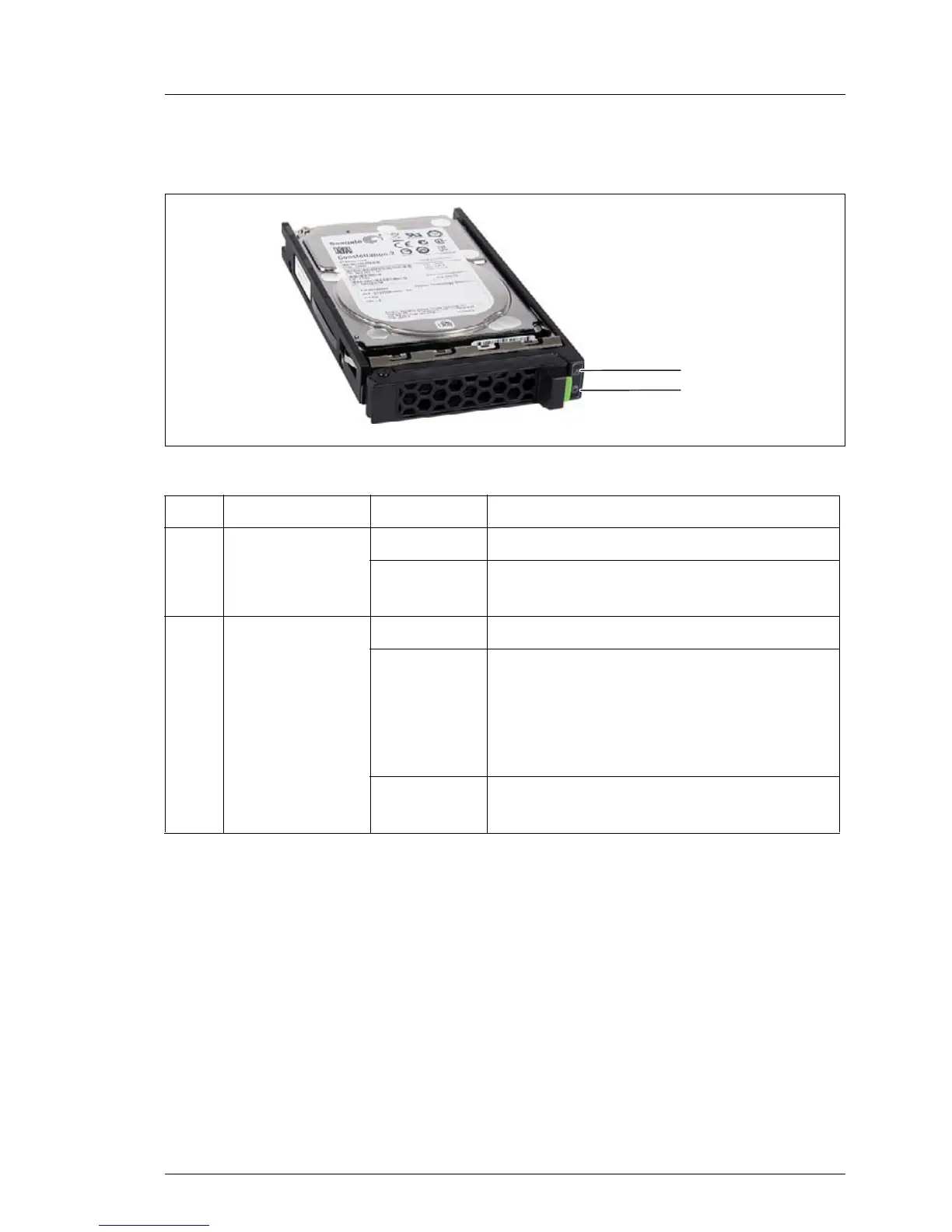

Figure 204: Indicators on the hot-plug HDD/SSD/PCIe SSD module
Pos. Indicator Status Description
1
HDD/SSD
BUSY
off HDD/SSD/PCIe SSD inactive
green on
HDD/SSD/PCIe SSD in active phase
(drive active, drive being accessed)
2
HDD/SSD/
PCIe SSD
FAULT
off no HDD/SSD/PCIe SSD error
orange on
HDD/SSD/PCIe SSD faulty or rebuild
stopped (drive defective/needs
replacing, a rebuild process was
stopped or the HDD/SSD/PCIe SSD
module is not correctly inserted)
orange slow
flashing
HDD/SSD/PCIe SSD rebuild (the data
is being restored after changing a drive)
