134 Upgrade and Maintenance Manual RX4770 M1
Expansion cards and backup units
9.1 Basic information
The system board is equipped with eleven expansion slots:

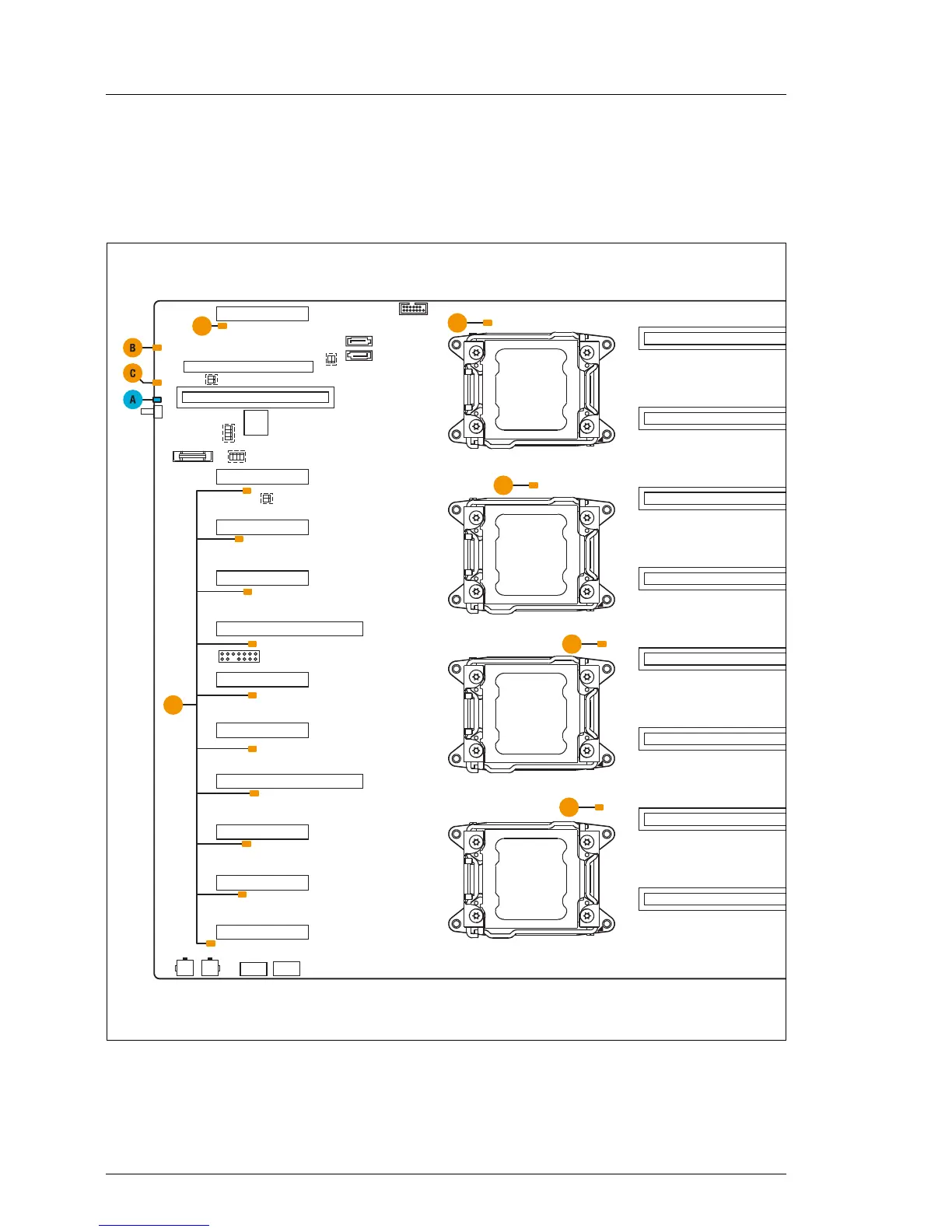

Figure 41: PCI slot overview
CPU 1
CPU 2
CPU 3
CPU 4
BIOS
INDI
TPM
Slot 10 PCIe x8 (x8)
Slot 9 PCIe x8 (x8)
Slot 8 PCIe x8 (x8)
Slot 7 PCIe x16 (x16)
Slot 6 PCIe x8 (x8)
Slot 5 PCIe x8 (x8)
Slot 4 PCIe x16 (x16)
Slot 3 PCIe x8 (x8)
Slot 2 PCIe x8 (x8)
Slot 1 PCIe x8 (x8)
BMC - Riser
LAN -Controller
SAS-Riser (Slot 11)
SATA 1
SATA 2
Battery
USB 2/3/4
ID Button
USB 0
USB 1
Memriser 3
Memriser 2
Memriser 1
Memriser 4
Memriser 5
Memriser 6
Memriser 7
Memriser 8
G
G
G
G
F
F
Sw. 4
Sw. 6
Sw. 8
Sw. 7
Sw.13
AB
Pwr PCIe
System Board
D3342
