170 Upgrade and Maintenance Manual RX4770 M1
Expansion cards and backup units
9.7.1.3 Cable routing PCIe cables

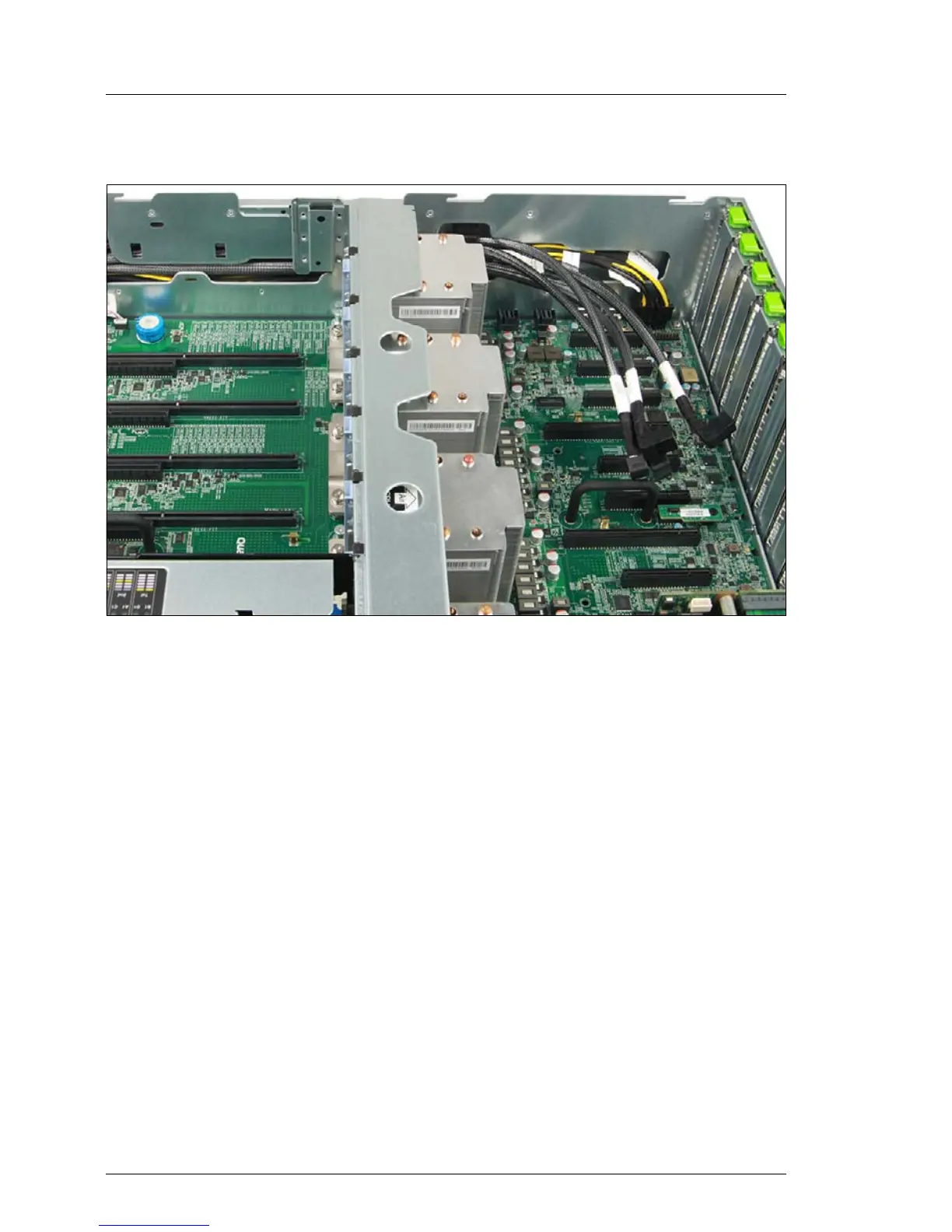

Figure 68: Cable routing PCie cables
Ê Route the 4 internal PCIe cables from the drive backplane inside the cable
channel as shown.
