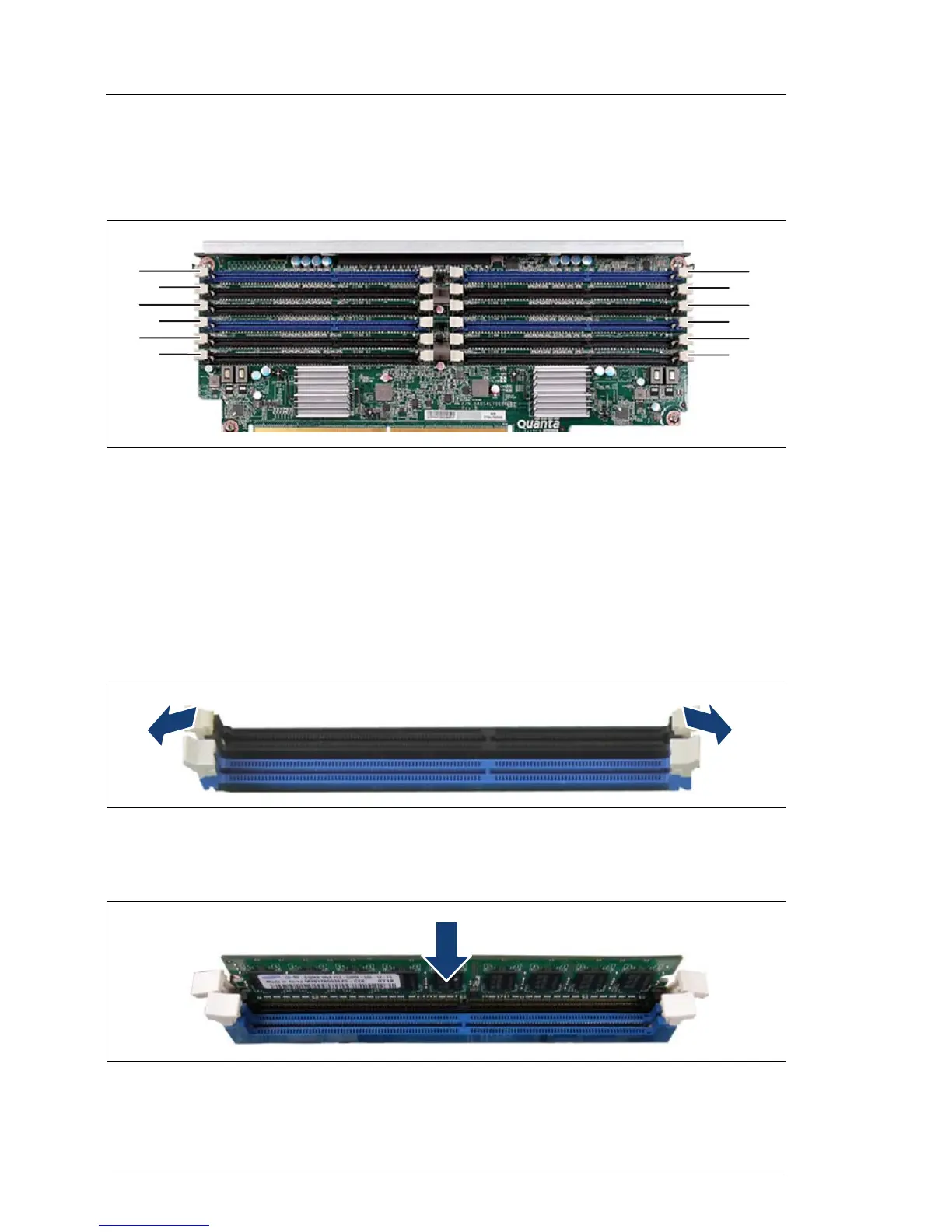

DIMM slot assigment of a memory board
The slot assignment for the memory modules is shown in the following figure:
Figure 124: DIMM slot assignment of memory board
I Population rules can be found on page 204.
10.2.3 Installing a memory module
Ê Identify the correct memory slot (see "DIMM slot assigment of a memory
board" on page 222).
Figure 125: Installing memory modules (A)
Ê Press out the securing clip at each end of the memory slot.
Figure 126: Installing memory modules (B)
Ê Align the notch on the bottom of the module with the crossbar in the slot.
