RX4770 M1 Upgrade and Maintenance Manual 185
Expansion cards and backup units
9.8.2.6 Connecting the FBU cable to the SAS riser (D3116)

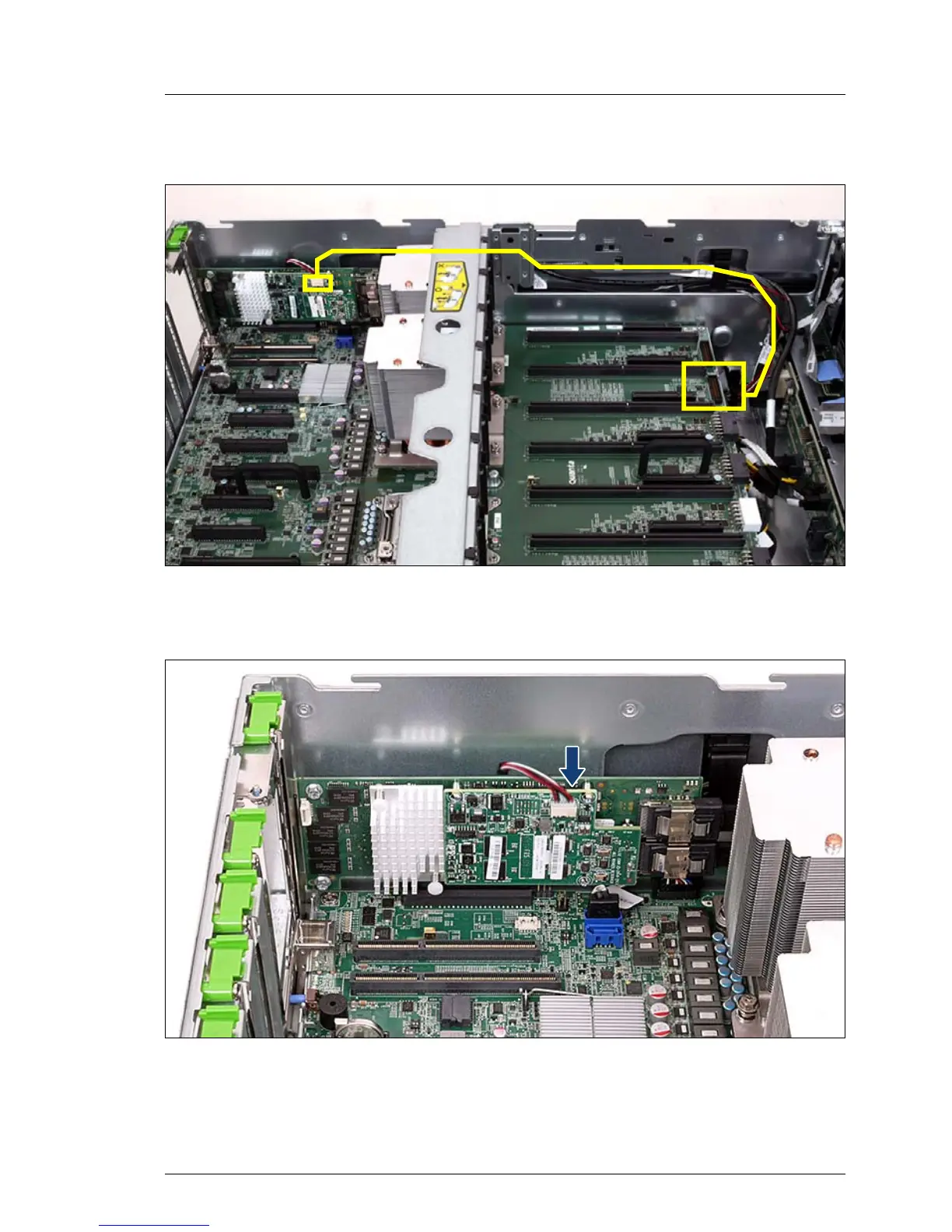

Figure 83: Routing the FBU cable to the SAS riser (D3116)
Ê Route the FBU cable as shown in the figure.
Figure 84: Connecting the FBU cable to the TFM on the SAS riser (D3116)
Ê Connect the FBU cable to the corresponding TFM connector (see arrow) on
the SAS riser.
