9.7.1.2 Connecting PCIe cables to the drive backplane (HSBP)

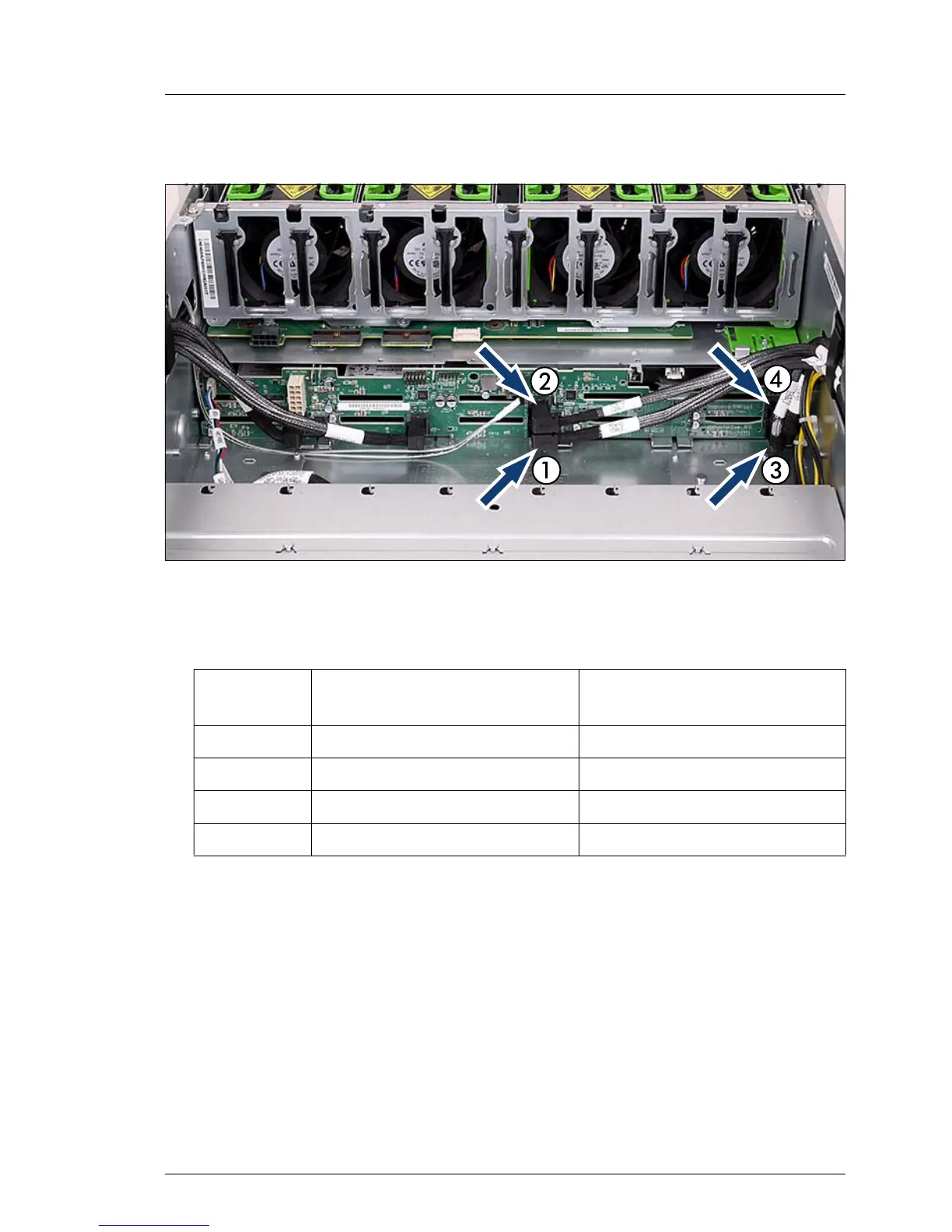

Figure 67: Connecting the PCIe cables to the drive backplane
Ê Connect the 4 internal PCIe cables to the drive backplane (HSBP). The
connector assignment is as follows:
I For a complete cabling overview, please refer to section "List of used
cables" on page 311.
No. in
figure
Label on the PCIe cable Connector no. on HSBP
1 PCIe HD CONN 0 PCIE CONN 0
2 PCIe HD CONN 1 PCIE CONN 1
3 PCIe HD CONN 2 PCIE CONN 2
4 PCIe HD CONN 3 PCIE CONN 3
