9.7.1.4 Installing the PCIe SW card

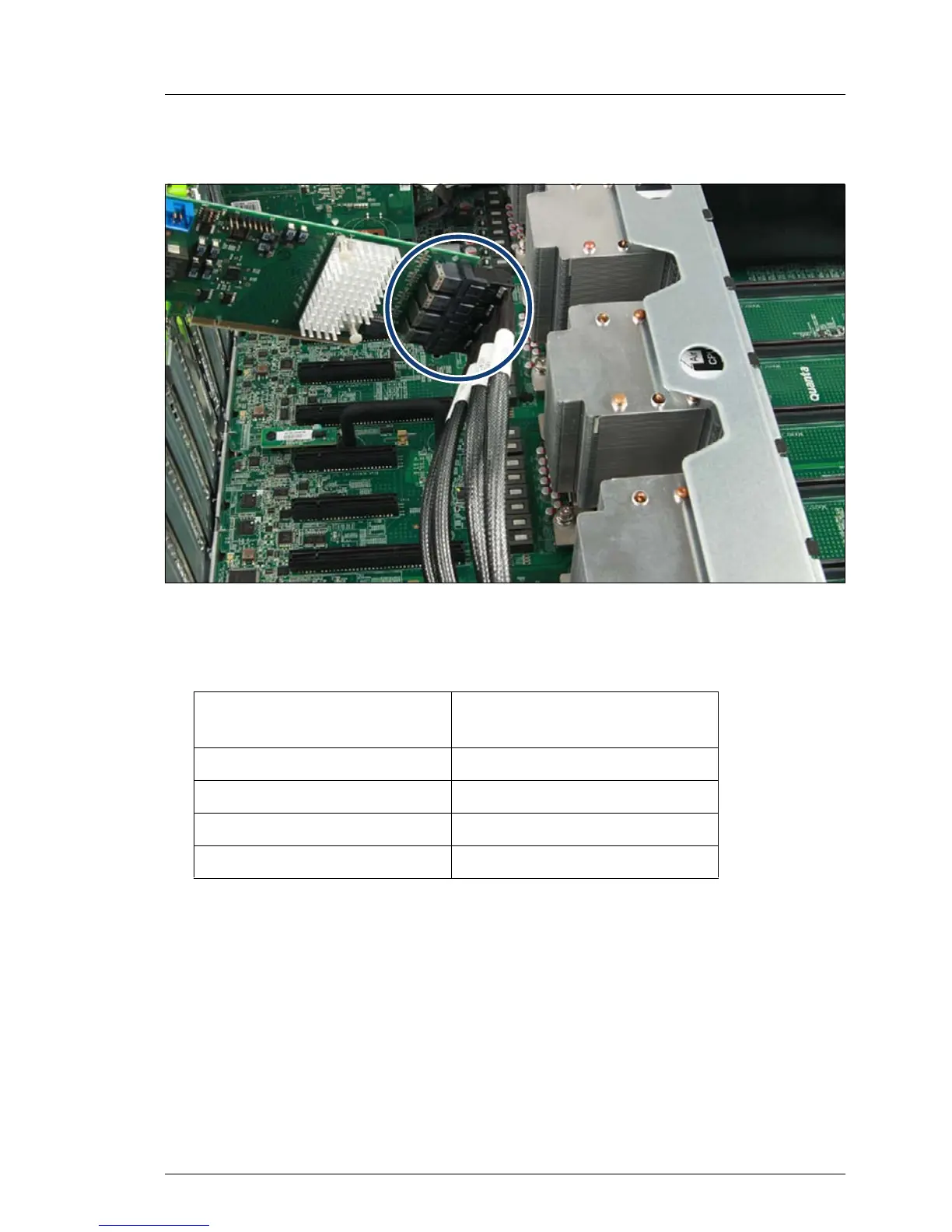

Figure 69: Connecting the PCIe cables with the PCIe SW card
Ê Connect the PCIe cables to the ports of the PCIe SW card (see circle). The
port numbers are printed next to each port.
Ê Remove the PCIe SW card from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the PCIe SW card as
described in section "Installing a slot bracket" on page 138.
Ê Remove the respective slot bracket.
I Slot #4 is the preferred slot for the PCIe SW card.
Label on the PCIe cable Connector no. on
PCIe SW card
PCIe SW SSD P0 P0/X1
PCIe SW SSD P1 P1/X2
PCIe SW SSD P2 P2/X3
PCIe SW SSD P3 P3/X4
