102 Upgrade and Maintenance Manual RX4770 M1
Power supply units
6.5.3 Installing the power distribution board

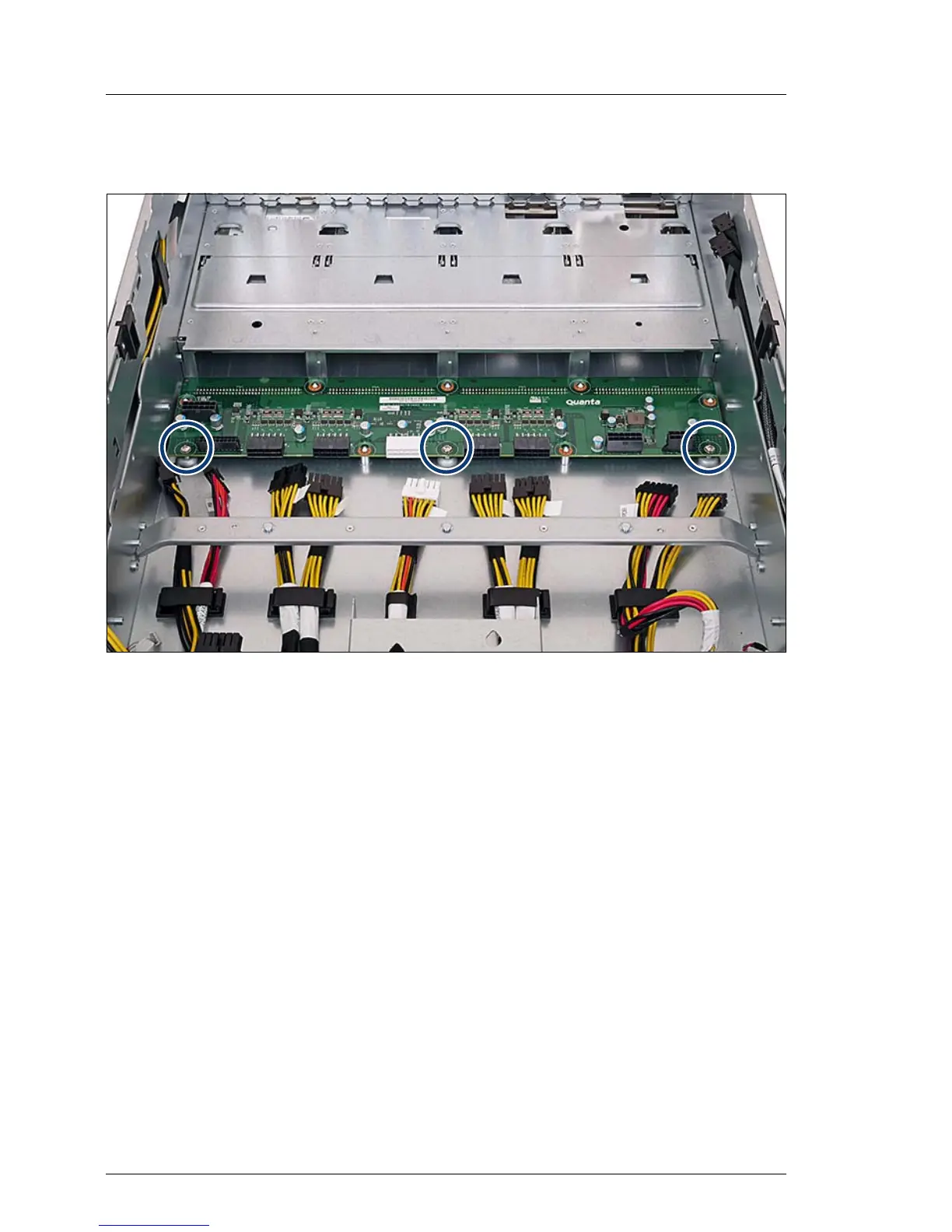

Figure 19: Mounting the power distribution board
Ê Lower the new power distribution board onto the spacer bolts on the chassis
floor.
Ê Secure the power distribution board on the spacer bolts with 3 screws (see
circles).
