RX4770 M1 Upgrade and Maintenance Manual 103
Power supply units

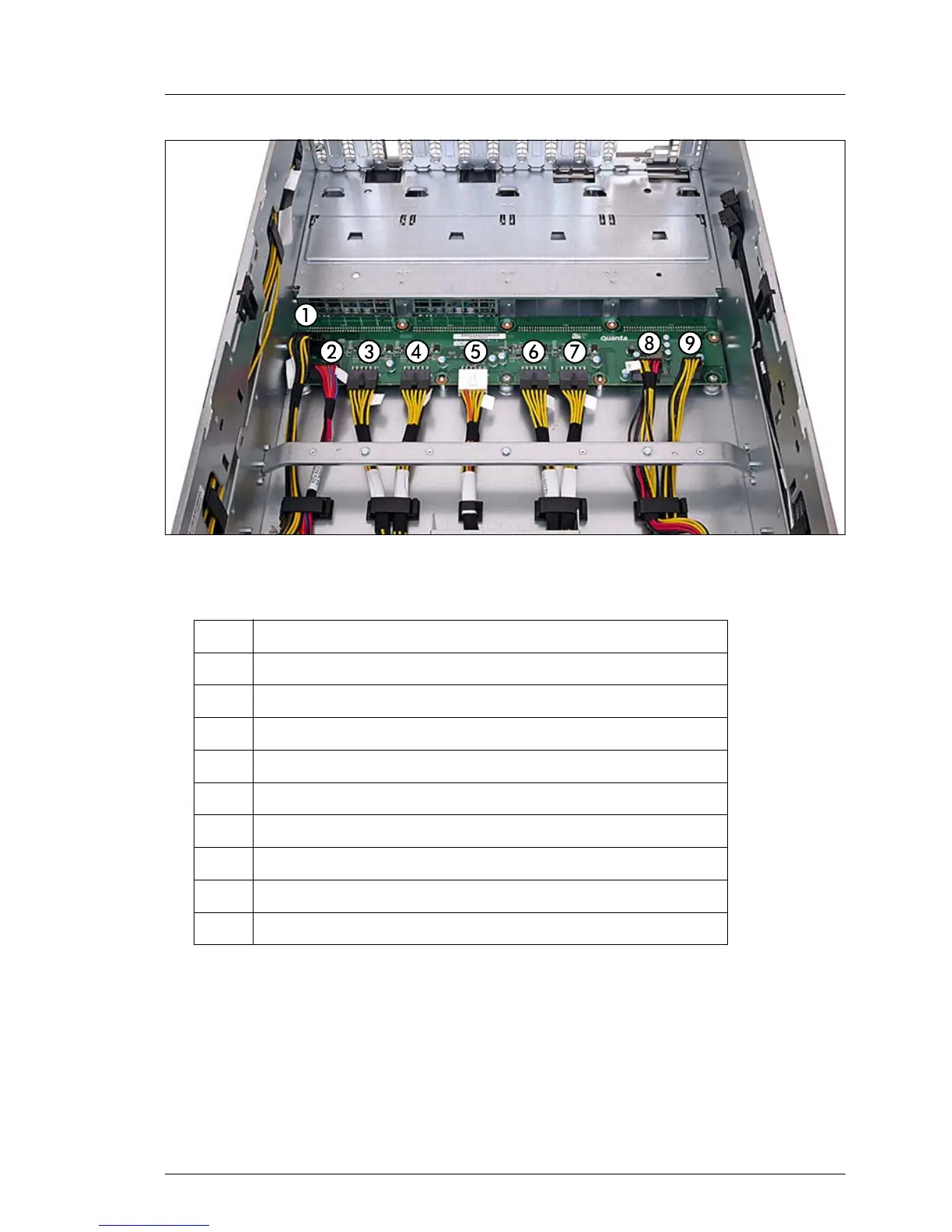

Figure 20: Cabling the power distribution board
Ê Reconnect all cables to the power distribution board:
I For a complete cabling overview, please refer to section "List of used
cables" on page 311.
#Cable
1 Power cable 3
2 PDB sideband cable
3 Power cable 1
4 Power cable 1
5 Power cable 2
6 Power cable 1
7 Power cable 1
8 HDD board power cable
9 Fan board power cable
